ASP-184329-01

Home > Board-to-Board Connectors > ASP-184329-01

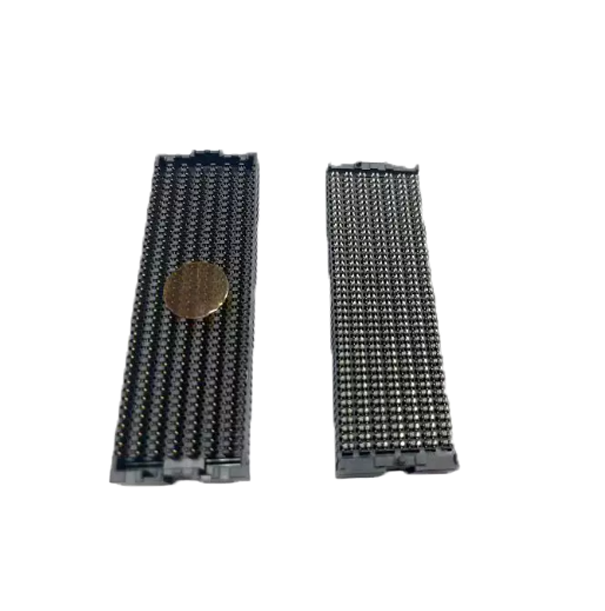

ASP-184329-01
Board-to-Board Connectors
ASP-184329-01
Mfr. Part No. : WASPF-14X40H06.5LAKTR.I
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
ASP-184329-01 is replaced by WASPF-14X40H06.5LAKTR.It is interchangeable with ASP-134488, ASP-134486, ASP-134603, 4604, 184330, 184329, ASP-134602 and 88588-01.Operating Temperature
Connector Series: WASPF
Number of Pins: 560
Connector Pitch: 1.27mm
Rows: 14
$18 $16
In Stock (3000)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WASPF
Connector Pitch 1.27mm
Rows 14
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy
Color Natural
Rated Voltage (VAC/VDC) 240
Rated Current per Contact (Max.) (A) Other
Plating Tin Plating (Sn)
Plating Thickness Other
Packaging Rigid Tray with Mylar Film
Insulation Diameter (mm) 4.20
Wire Gauge (AWG) 16
Operating Temperature -55℃～125℃
Number of Circuits 210
Product Dimension
Dimension image will be displayed here
