ERF8-013-05.0-L-DV

Home > Board-to-Board Connectors > ERF8-013-05.0-L-DV

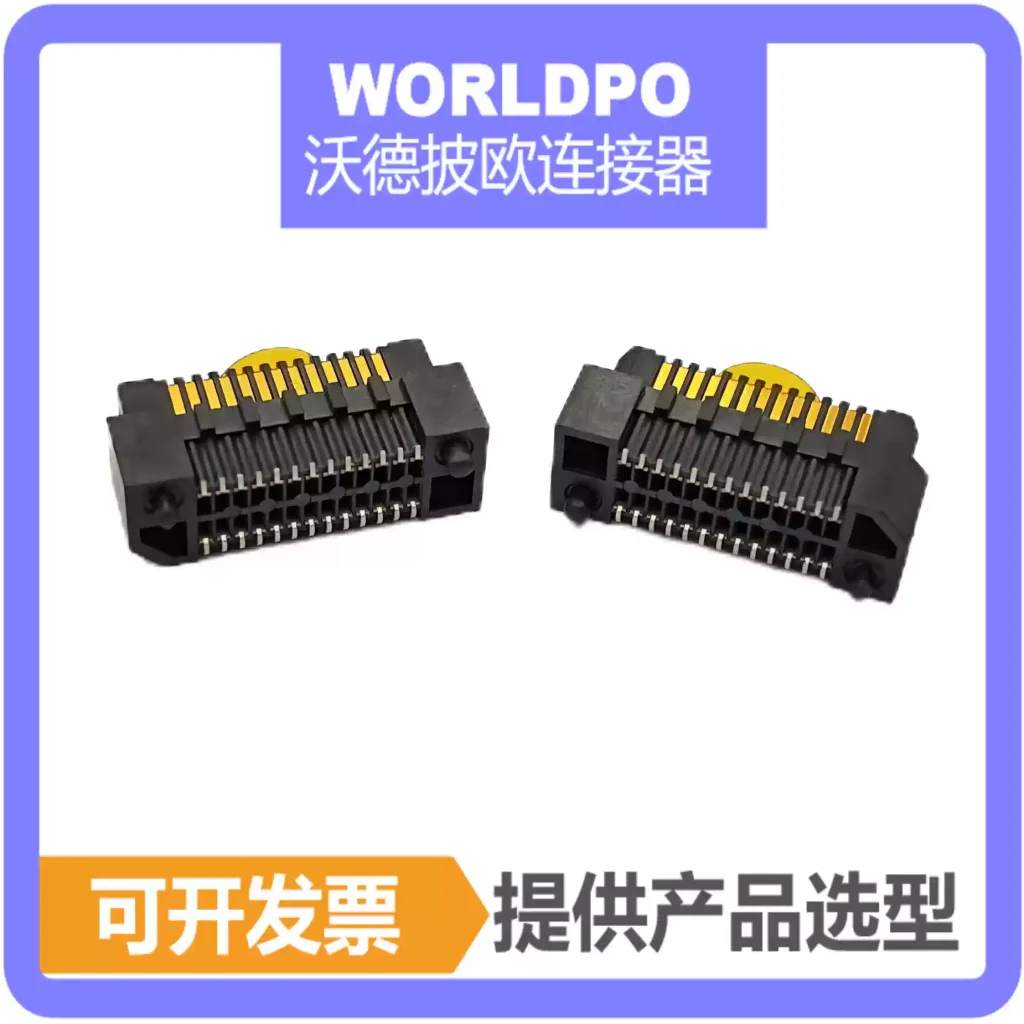

ERF8-013-05.0-L-DV
Board-to-Board Connectors
ERF8-013-05.0-L-DV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERF8-013-05.0-L-DV is WERF8-2X13H05.0LDV. ERM8-013-05.0-L/S-DV-K-TR is a male connector with 2 rows and 26 pins, combined heights of 10/12 mm. This board-to-board connector features excellent heat and cold resistance.
Connector Series: WERF8
Number of Pins: 26
Connector Pitch: 0.80mm
Rows: 2
$2.6 $2.3
In Stock (1300)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERF8-013-05.0-L-DV
Connector Type Terminal
Connector Series WERF8
Connector Pitch 0.80mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
