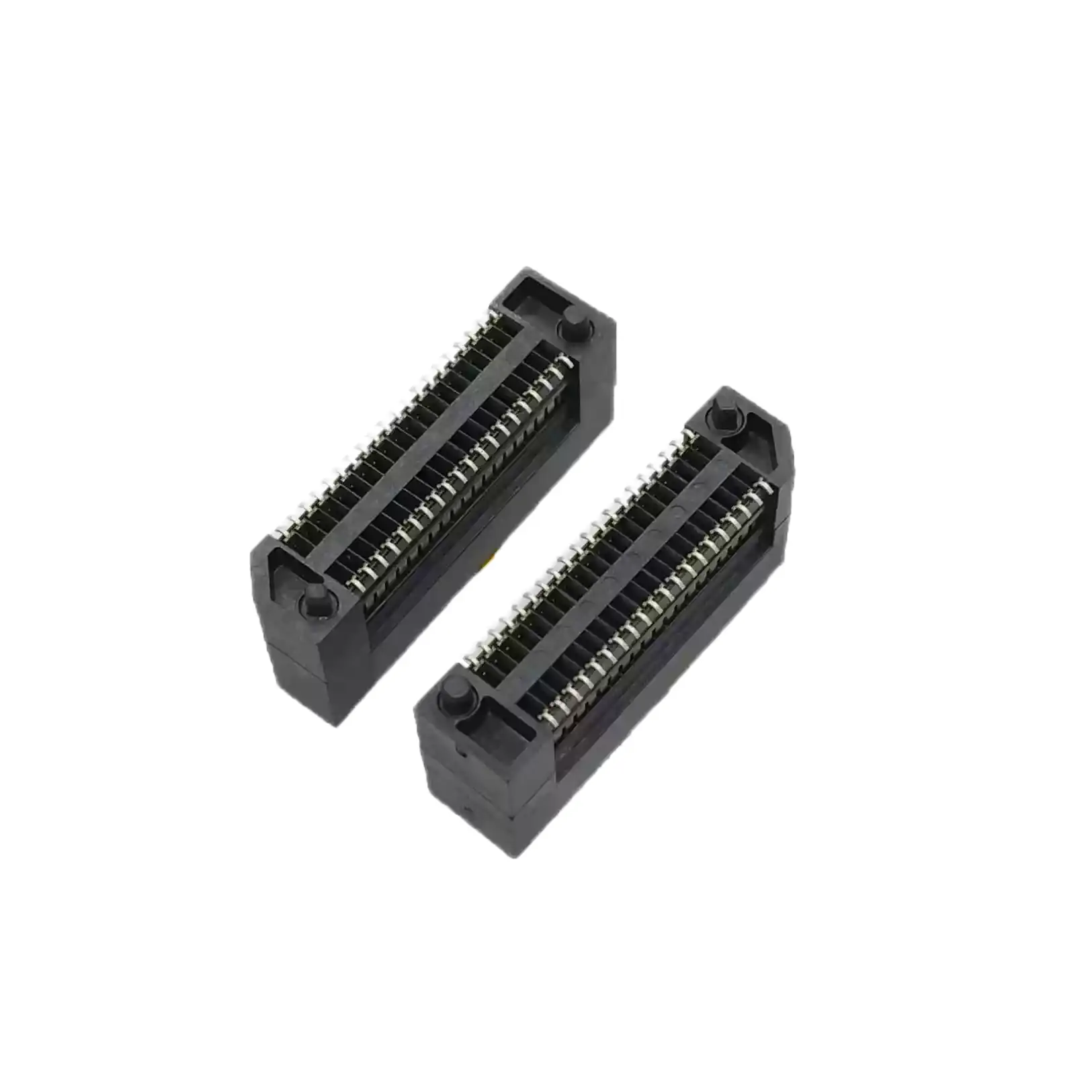

ERF8-020-09.0-L-DV
Board-to-Board Connectors
ERF8-020-09.0-L-DV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for ERF8-020-09.0-L-DV is WERF8-2X20H09.0LDV, ERF8-020-09.0-L/S-DV-K-TR female connector, 2-row 40-pin, height 11/14/18 mm, board-to-board connector, ERF8-020-09.0-L-DV* female *10 pcs
Connector Series: WERF8
Number of Pins: 40
Connector Pitch: 0.80mm
Rows: 2
$5.86 $5.01
In Stock (1886)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERF8-020-09.0-L-DV
Connector Type Terminal
Connector Series WERF8
Connector Pitch 0.80mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy
Rows 2
Color Light Blue
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 1～2A
Plating Gold Plating (Au)
Plating Thickness 50μin（1.27μm）
Packaging Tape and Reel
Insulation Diameter (mm) 3.05
Wire Gauge (AWG) 28～30
Operating Temperature -55℃～150℃
Number of Circuits Other
