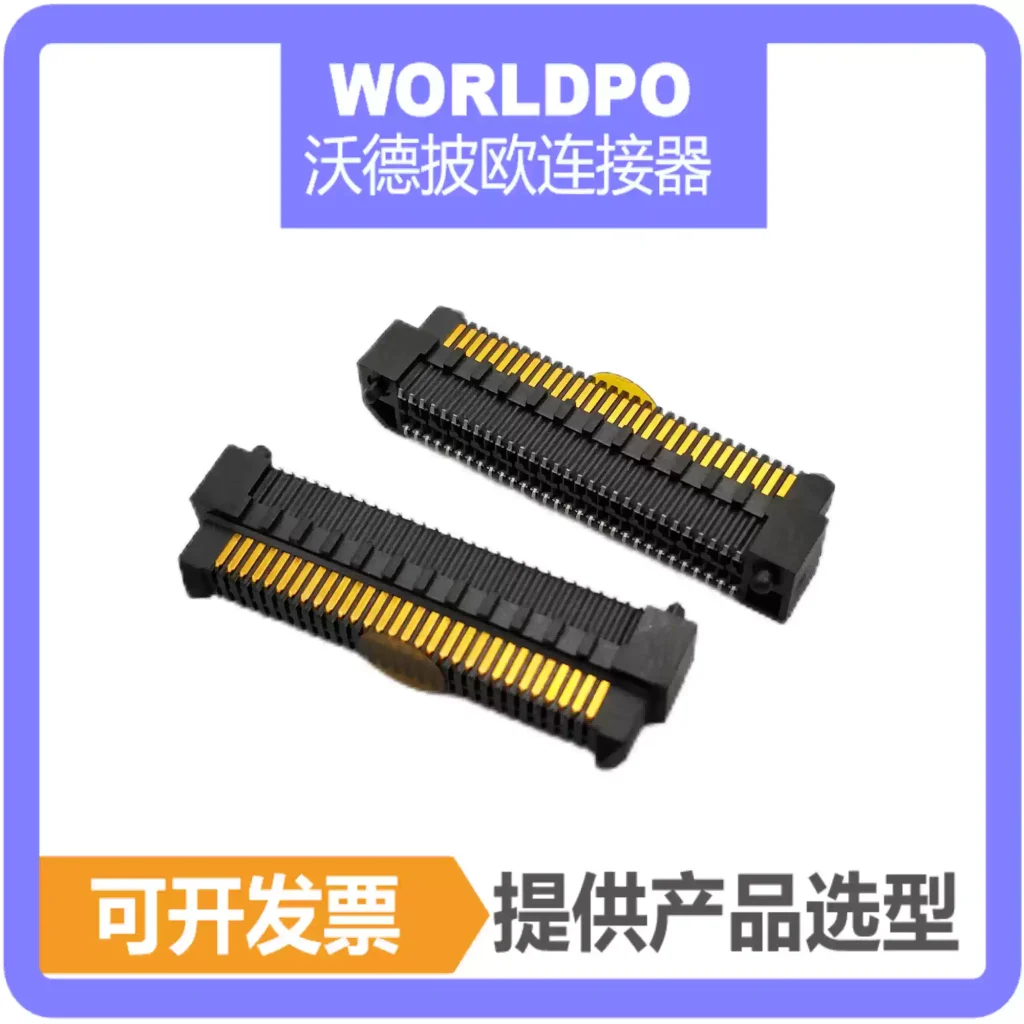

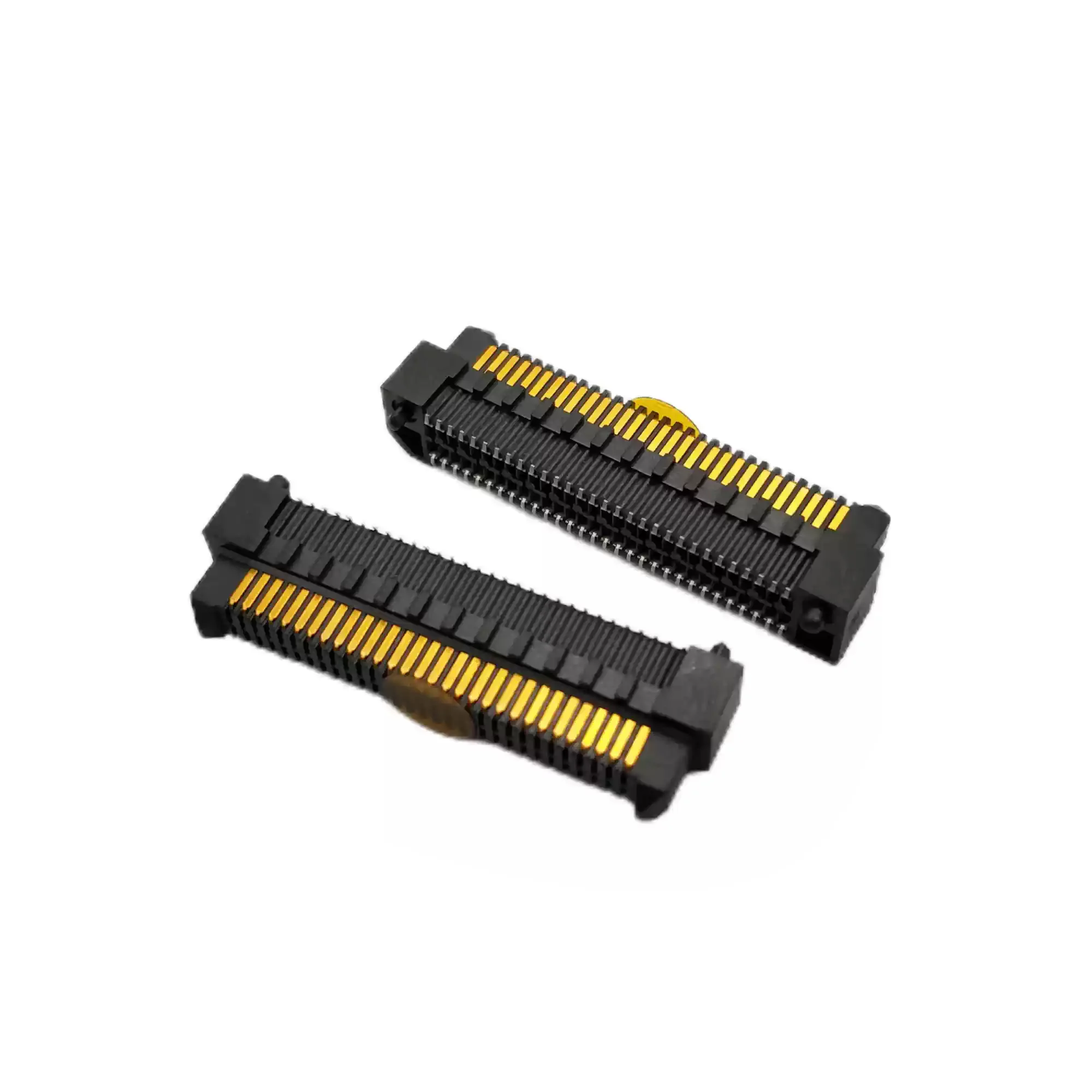

ERF8-030-05.0-L-DV
Board-to-Board Connectors
ERF8-030-05.0-L-DV
Mfr. Part No. : WERF8-2X30H05.0LDV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERF8-030-05.0-L-DV is WERF8-2X30H05.0LDV. ERM8-030-05.0-L/S-DV-K-TR is a 60-pin male connector with mating heights of 10/12/14 mm. This board-to-board connector features excellent heat resistance and cold resistance.
Connector Series: WERF8
Number of Pins: 60
Connector Pitch: 1.27mm
Rows: 2
$3.2 $3
In Stock (1338)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WERF8
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal Brass
Color Red
Rated Voltage (VAC/VDC) 30
Rated Current per Contact (Max.) (A) 3～5A
Plating Other
Plating Thickness 10μin（0.254μm）
Packaging Other
Insulation Diameter (mm) 1.27
Wire Gauge (AWG) 24～26
Operating Temperature -55℃～125℃
Number of Circuits 22
