ERF8-060-07.0-L-DV-K-TR

Home > Board-to-Board Connectors > ERF8-060-07.0-L-DV-K-TR

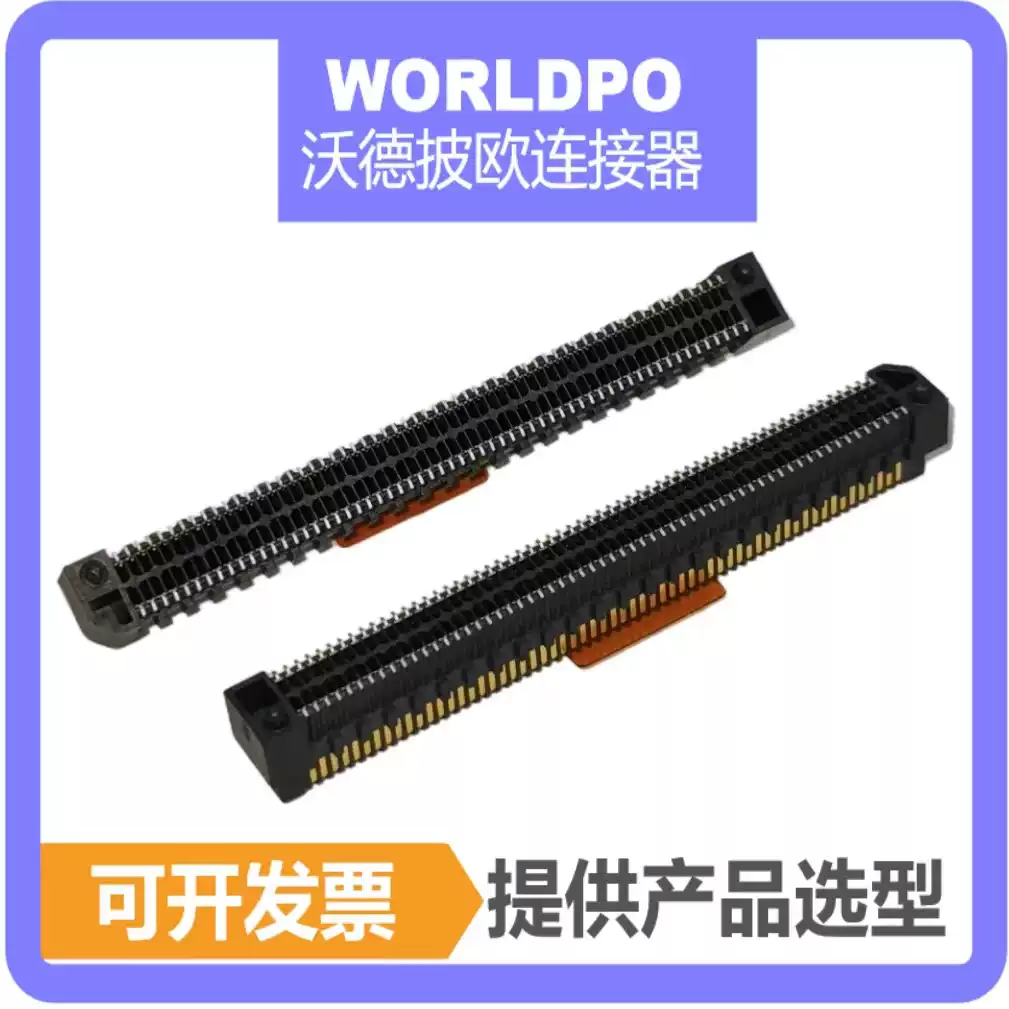

ERF8-060-07.0-L-DV-K-TR
Board-to-Board Connectors
ERF8-060-07.0-L-DV-K-TR
Mfr. Part No. : WERF8-2X60H07.0LDVKTR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERF8-060-07.0-L-DV-K-TR is WERF8-2X60H07.0LDVKTR. ERM8-060-05.0-L/S-DV-K-TR is a male connector with 2 rows and 120 pins, featuring a mated height of 10/12 mm. This board-to-board connector is resistant to both high temperature and low temperature.
Connector Series: WERF8
Number of Pins: 120
Connector Pitch: 0.80mm
Rows: 2
$5.3 $5
In Stock (1021)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WERF8
Connector Pitch 0.80mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal Other
Color Green + Au-plated (15μin)
Rated Voltage (VAC/VDC) 32
Rated Current per Contact (Max.) (A) 0.5～1A
Plating Tin Plating (Sn)
Plating Thickness 3μin（0.076μm）
Packaging Rigid Tray with Cover
Insulation Diameter (mm) 2.90
Wire Gauge (AWG) 14～18
Operating Temperature -55℃～125℃
Number of Circuits 288
Product Dimension
Dimension image will be displayed here
