FTSH-110-01-F-DV-K-P

Home > Board-to-Board Connectors > FTSH-110-01-F-DV-K-P
FTSH-110-01-F-DV-K-P
Board-to-Board Connectors
FTSH-110-01-F-DV-K-P
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

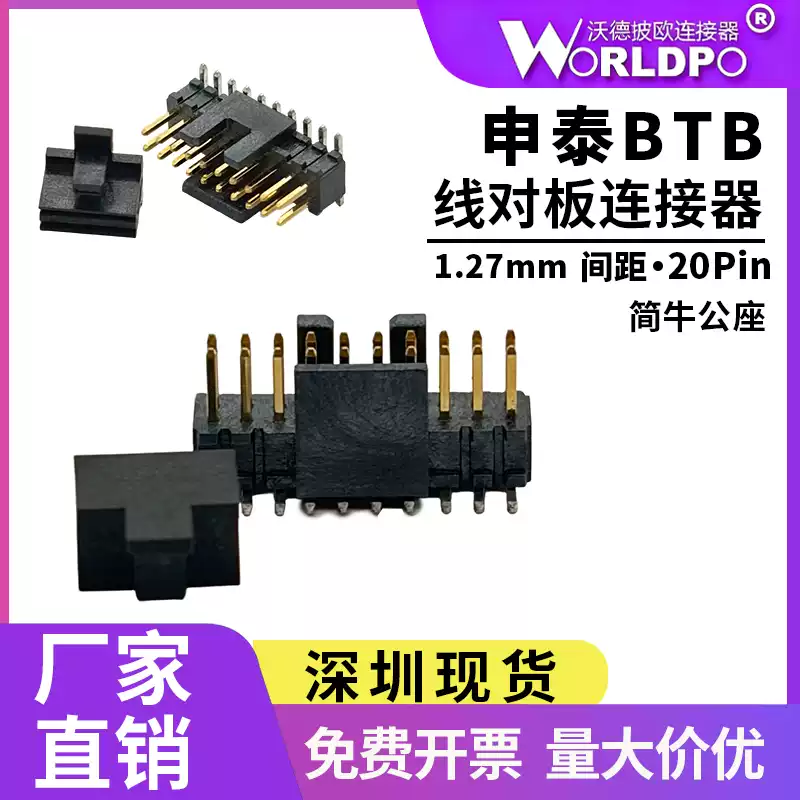

FTSH-110-01-F-DV-K-P is compatible with WFTSH-210H01FDVKP.It is interchangeable with Samtec FTSH-110-01-F/L-DV-K-P-TR.It is a male 1.27mm pin header, 2-row 20Pin board-to-board connector, with high and low temperature resistance.
Connector Series: WFTSH
Number of Pins: 20
Connector Pitch: 1.27mm
Rows: 2
$0.86 $0.77
In Stock (3000)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-110-01-F-DV-K-P
Connector Type Other
Connector Series WFTSH
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal Phosphor Bronze
Rows 2
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 5μin（0.127μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
