QSH-060-01-H-D-A

Home > Board-to-Board Connectors > QSH-060-01-H-D-A

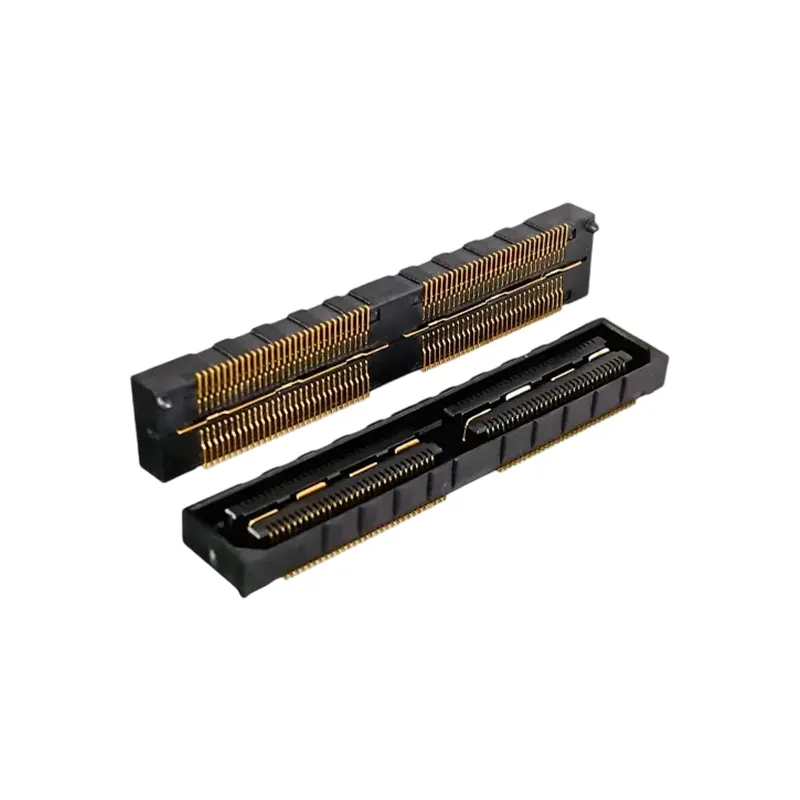

QSH-060-01-H-D-A
Board-to-Board Connectors
QSH-060-01-H-D-A
Mfr. Part No. : WQSH-2X60H02HDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of QSH-060-01-H-D-A is WQSH-2X60H02HDA. QTH-060-02-F/L/C-D-A-K-TR is a male 2-row 120-pin board-to-board connector with a mating height of 8mm, featuring excellent heat and cold resistance.
Connector Series: WQSH
Number of Pins: 120
Connector Pitch: 0.50mm
Rows: 2
$9.2 $8.9
In Stock (2520)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WQSH
Connector Pitch 0.50mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 100
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 28～30
Operating Temperature -55℃～125℃
Number of Circuits 210
Product Dimension
Dimension image will be displayed here
