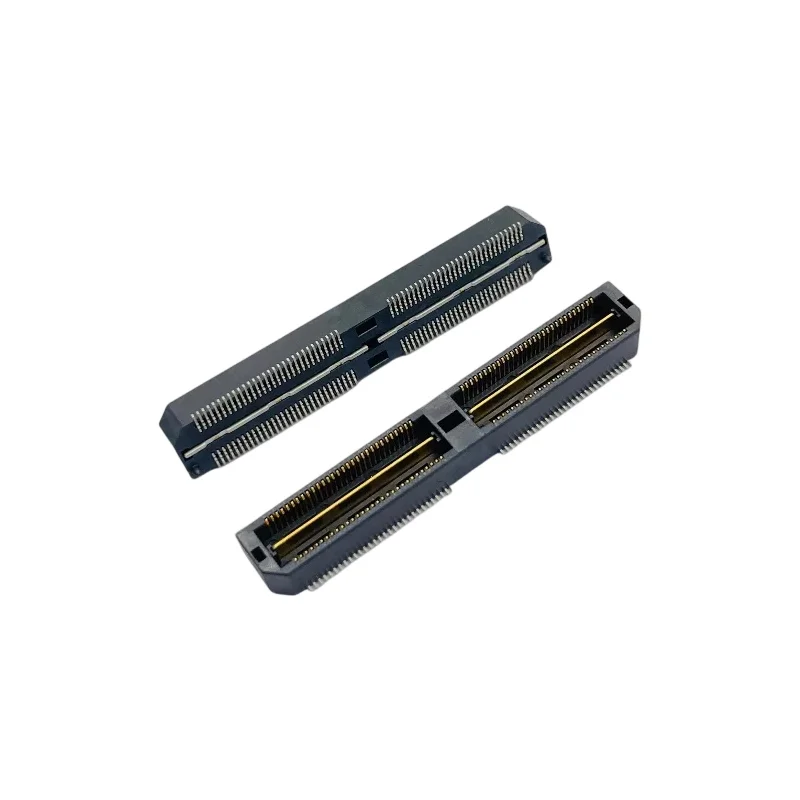

QTH-060-01-L-D-A-K-TR
Board-to-Board Connectors
QTH-060-01-L-D-A-K-TR
Mfr. Part No. : WQTH-2X60H01LDAK-TR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible models of QTH-060-01-L-D-A-K-TR are WQTH-2X60H01LDAK-TR, QSH/QTH/QTE/QSE-020/030/060/090-01 02-L-D-A-K-TR. These board-to-board connectors feature excellent heat resistance and cold resistance.
Connector Series: WQTH
Number of Pins: 120
Connector Pitch: 0.50mm
Rows: 2
$4.3 $4
In Stock (2021)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WQTH
Connector Pitch 0.50mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 100
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 13
Operating Temperature -55℃～125℃
Number of Circuits Other
