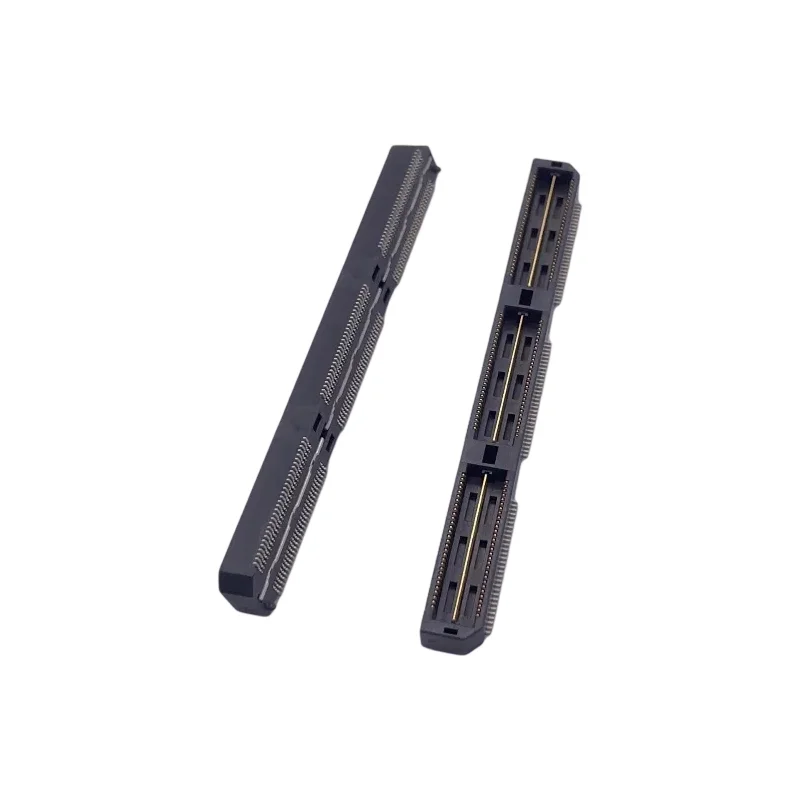

QTH-090-01-L-D-A-K-TR
Board-to-Board Connectors
QTH-090-01-L-D-A-K-TR
Mfr. Part No. : QTH-2X90H01LDAKTR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible models of QTH-090-01-L-D-A-K-TR are QTH-2X90H01LDAKTR, QSH/QTH/QTE/QSE-020/030/060/090-01 02-L-D-A-K-TR. These board-to-board connectors feature excellent heat resistance and cold resistance.
Connector Series: WQTH
Number of Pins: 180
Connector Pitch: 0.50mm
Rows: 2
$5.4 $5.1
In Stock (2520)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WQTH
Connector Pitch 0.50mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 125
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) 2.80
Wire Gauge (AWG) 18～26
Operating Temperature -55℃～125℃
Number of Circuits 288
