SEAM-20-03.5-S-08-2-A

Home > Board-to-Board Connectors > SEAM-20-03.5-S-08-2-A

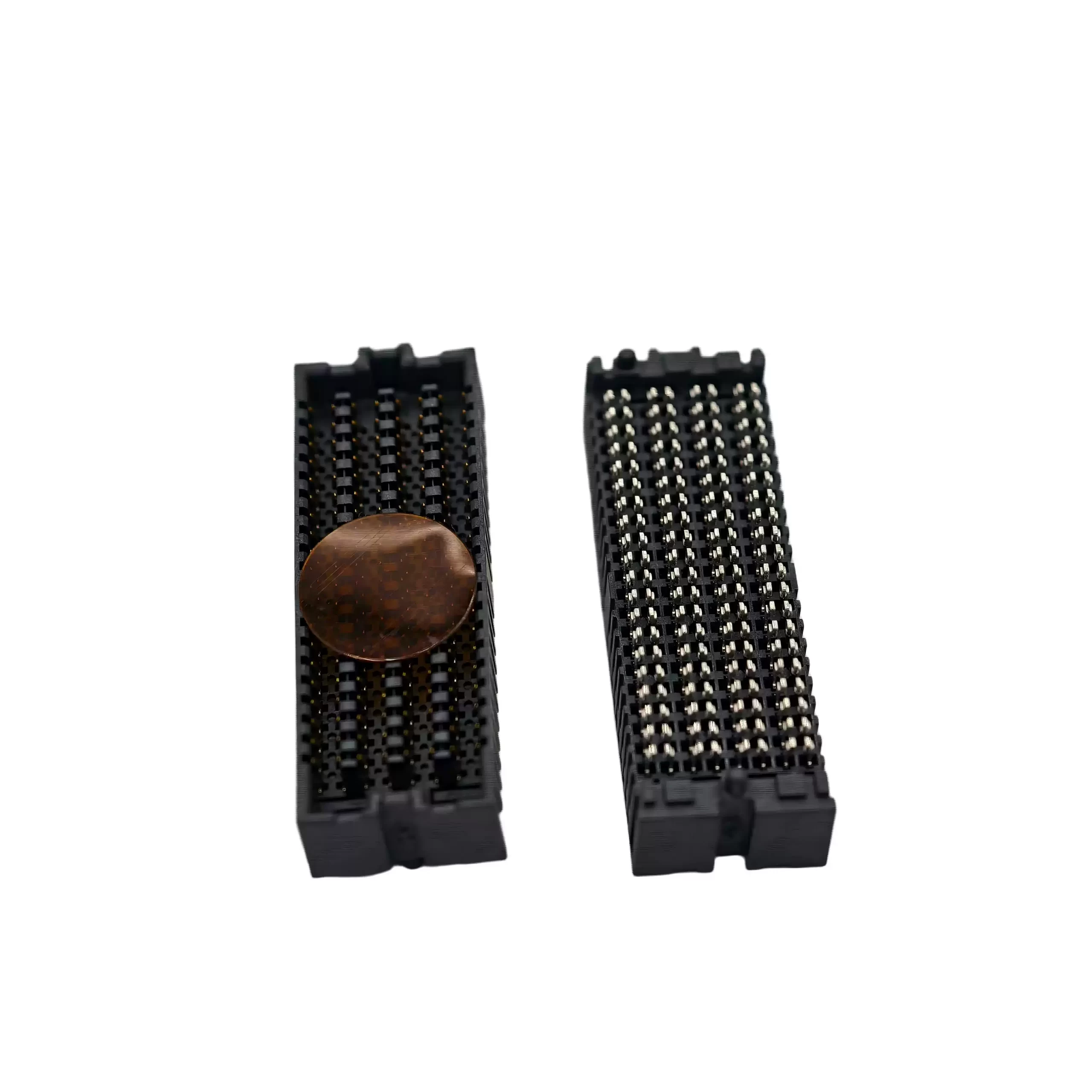

SEAM-20-03.5-S-08-2-A
Board-to-Board Connectors
SEAM-20-03.5-S-08-2-A
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for SEAM-20-03.5-S-08-2-A is WSEAM-8X20H03.5S082A, which is compatible with the Samtec SEAF-20-06.5-L/S-08-2-A-K-TR female connector. It is an 8-row, 160Pin connector with a combined height of 8.5/10mm, featuring heat resistance and cold resistance.
Connector Series: WSEAM
Number of Pins: 160
Connector Pitch: 1.27mm
Rows: 8
$9.8 $9.3
In Stock (1360)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model SEAM-20-03.5-S-08-2-A
Connector Type Terminal
Connector Series WSEAM
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal Phosphor Bronze
Rows 8
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 30μin（0.76μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
