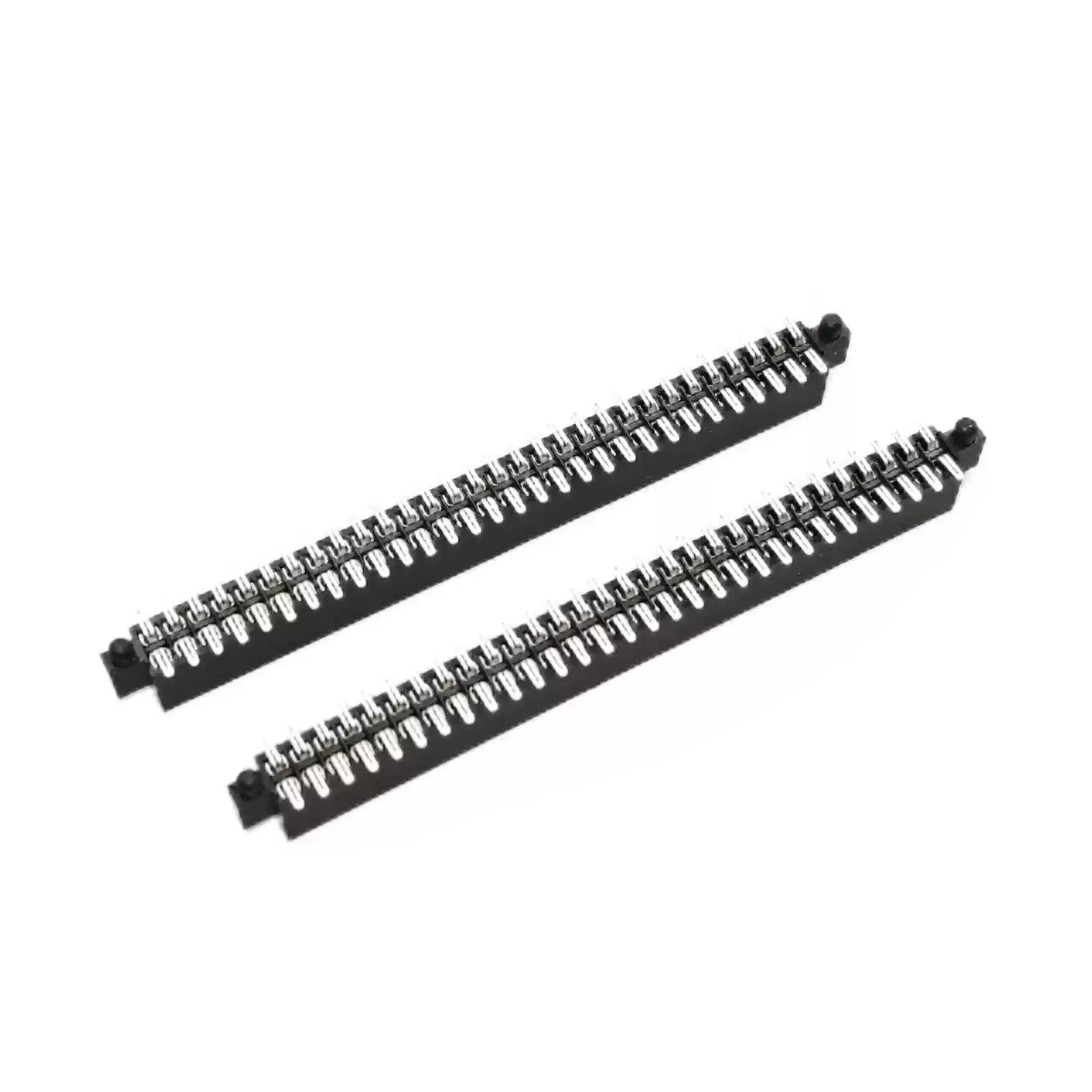

SFC-130-T2-F-D-A
Board-to-Board Connectors
SFC-130-T2-F-D-A
Mfr. Part No.: WSFC-2X30HT2FDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of SFC-130-T2-F-D-A is WSFC-2X30HT2FDA; SFC-130-T2-L/F-D-LC/A-K-TR is a female 2-row 60-pin board-to-board connector with a pitch of 1.27 mm, and the board-to-board connector features heat and cold resistance.
Connector Series: WSFC
Number of Pins: 60
Connector Pitch: 1.27mm
Rows: 2
$5.1 $4.9
In Stock (3213)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WSFC
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Orange
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 28～32
Operating Temperature -40℃～140℃
Number of Circuits 3
Product Dimension
Dimension image will be displayed here
