SOLC-135-02-F-Q-A

Home > Board-to-Board Connectors > SOLC-135-02-F-Q-A
SOLC-135-02-F-Q-A
Board-to-Board Connectors
SOLC-135-02-F-Q-A
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

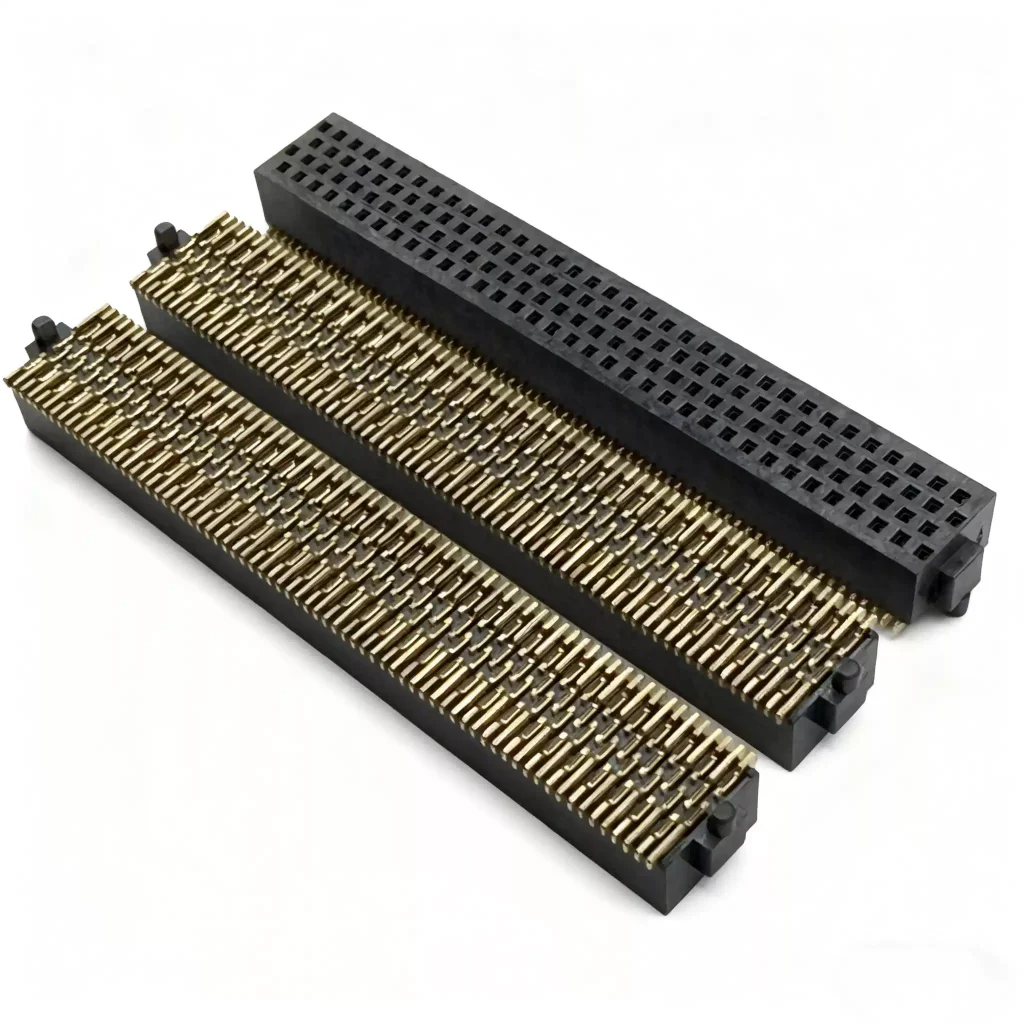

The compatible product of SOLC-135-02-F-Q-A is WSOLC-4X35H02FQA, which is compatible with the Samtec board-to-board connector SOLC-135-02-L/F/S-Q-A-K-TR female socket with 1.27mm pitch, 4 rows and 140 pins, featuring heat and cold resistance.
Connector Series: WSOLC
Number of Pins: 140
Connector Pitch: 1.27mm
Rows: 4
$9.6 $9
In Stock (1498)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model SOLC-135-02-F-Q-A
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
