SOLC-140-02-S-Q-A

Home > Board-to-Board Connectors > SOLC-140-02-S-Q-A

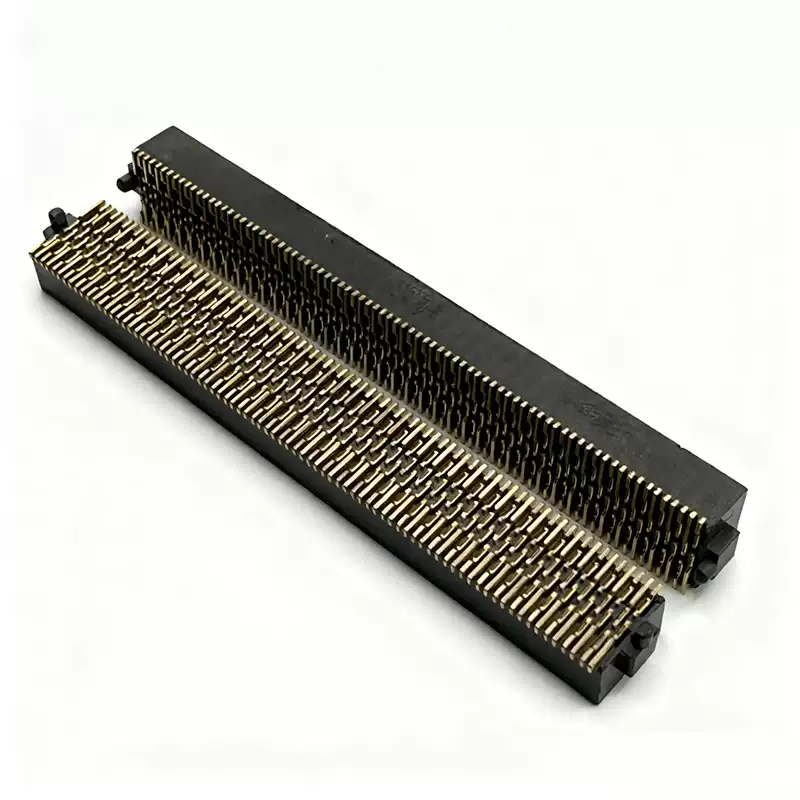

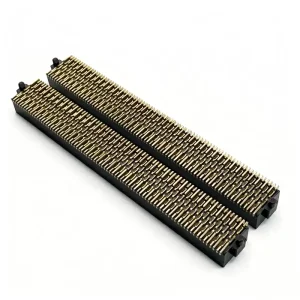

SOLC-140-02-S-Q-A
Board-to-Board Connectors
SOLC-140-02-S-Q-A
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The alternative product for SOLC-140-02-S-Q-A is WSOLC-4X40H02SQA. It replaces Suntek board-to-board connector SOLC-140-02-L/F/S-Q-A-K-TR female socket with 1.27mm pitch, 4 rows and 160 pins, featuring heat and cold resistance.
Connector Series: WSOLC
Number of Pins: 160
Connector Pitch: 1.27mm
Rows: 4
$10.6 $10
In Stock (1321)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model SOLC-140-02-S-Q-A
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
