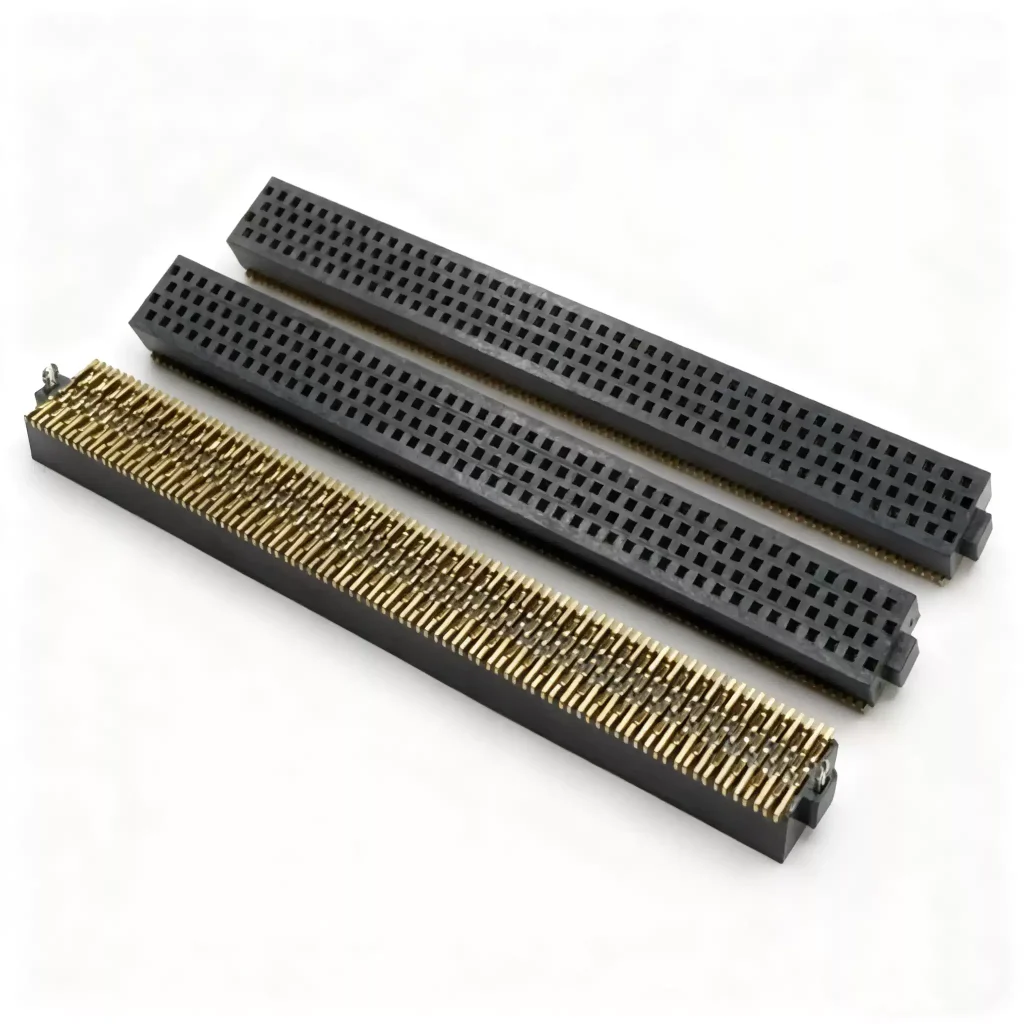

SOLC-145-02-F-Q-LC
Board-to-Board Connectors
SOLC-145-02-F-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The alternative product for SOLC-145-02-F-Q-LC is WSOLC-4X45H02FQLC. It replaces the Suntek board-to-board connector SOLC-145-02-L/F/S-Q-LC-K-TR female socket, featuring a 1.27mm pitch, 4 rows and 180 pins, with heat and cold resistance.
Connector Series: WSOLC
Number of Pins: 180
Connector Pitch: 1.27mm
Rows: 4
$11.6 $11
In Stock (1263)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model SOLC-145-02-F-Q-LC
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
