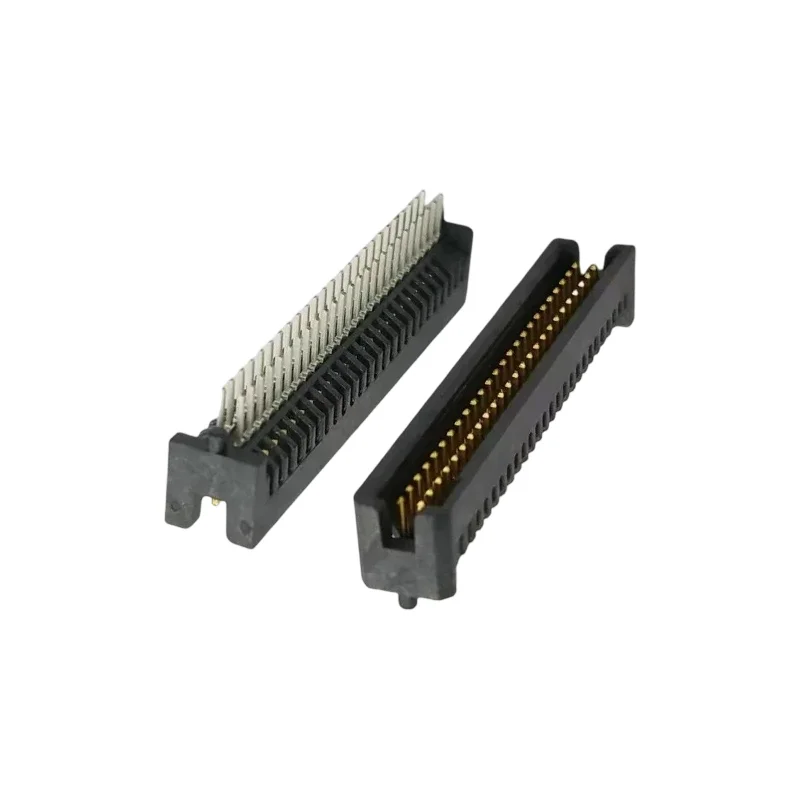

TFC-125-01-L-D-A
Board-to-Board Connectors
TFC-125-01-L-D-A
Mfr. Part No.: WTFC-2X25H01LDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible models of TFC-125-01-L-D-A are WTFC-2X25H01LDA and TFC/SFC-110/115/120/125/130/135-01-L-D-A-K-TR. These are 2-row board-to-board connectors with a pitch of 1.27mm, featuring good heat resistance and cold resistance.
Connector Series: WTFC
Number of Pins: 50
Connector Pitch: 1.27mm
Rows: 2
$3.7 $3.5
In Stock (6212)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WTFC
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 3.80
Wire Gauge (AWG) 20
Operating Temperature -55℃～125℃
Number of Circuits 84
