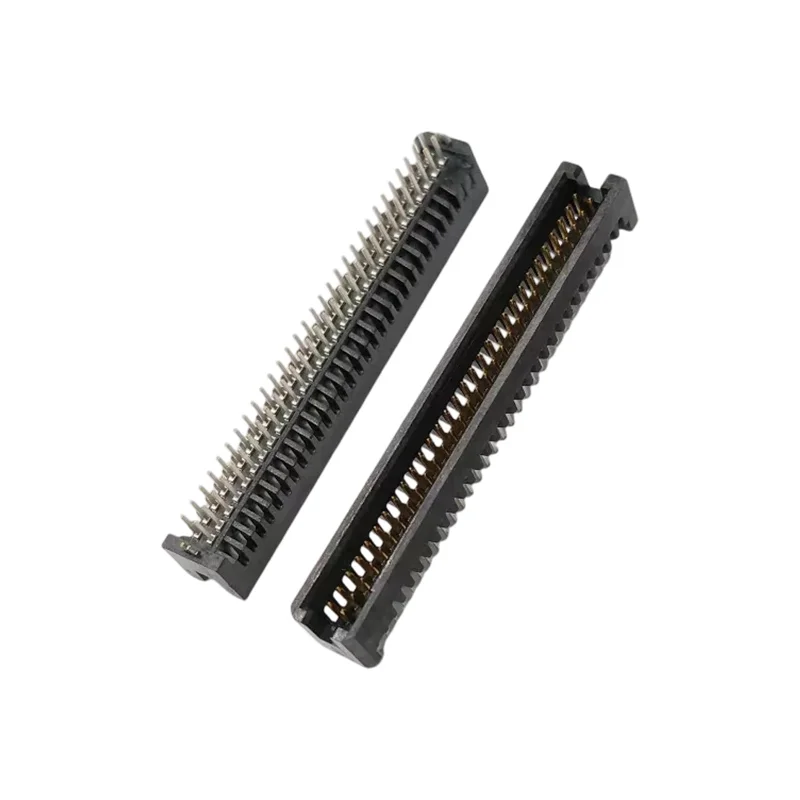

TFC-130-01-L-D-A
Board-to-Board Connectors
TFC-130-01-L-D-A
Mfr. Part No.: WTFC-2X30H01LDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of TFC-130-01-L-D-A is WTFC-2X30H01LDA. SFC-130-T1-L/F-D-LC/A-K-TR is a female 2-row 60-pin board-to-board connector with a 1.27mm pitch, featuring resistance to both high and low temperatures.
Connector Series: WTFC
Number of Pins: 60
Connector Pitch: 1.27mm
Rows: 2
$5.1 $4.9
In Stock (2343)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WTFC
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 50
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits 35
