TFC-135-01-L-D-A

Home > Board-to-Board Connectors > TFC-135-01-L-D-A

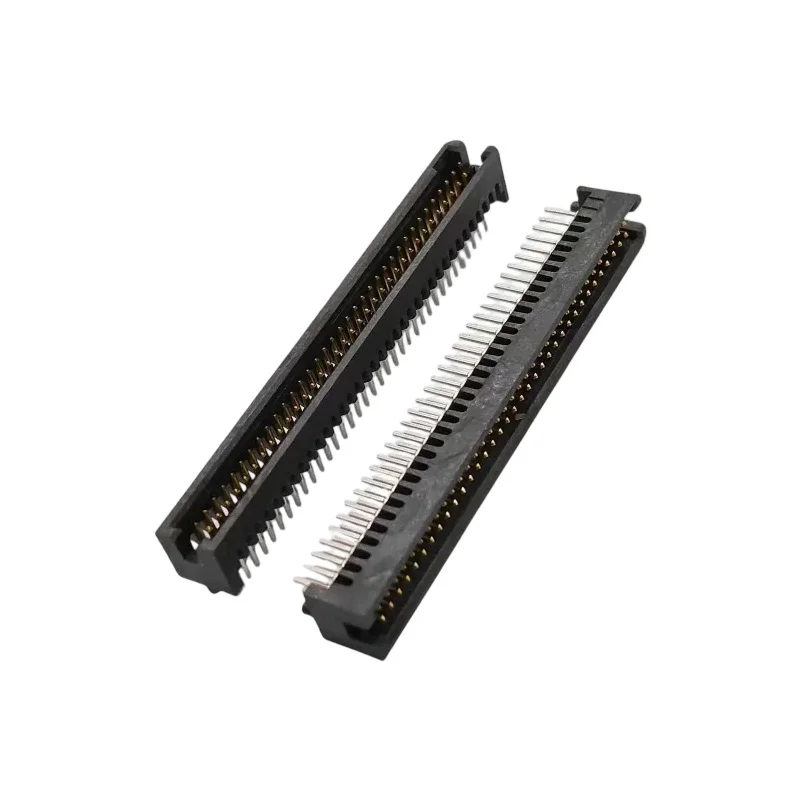

TFC-135-01-L-D-A
Board-to-Board Connectors
TFC-135-01-L-D-A
Mfr. Part No.: WTFC-2X35H01LDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible models of TFC-135-01-L-D-A are WTFC-2X35H01LDA and TFC/SFC-110/115/120/125/130/135-01-L-D-A-K-TR. These are 2-row board-to-board connectors with a 1.27mm pitch, featuring excellent heat resistance and cold resistance.
Connector Series: WTFC
Number of Pins: 70
Connector Pitch: 1.27mm
Rows: 2
$7.1 $6.8
In Stock (3646)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WTFC
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 200
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 3.80
Wire Gauge (AWG) 10
Operating Temperature -40℃～140℃
Number of Circuits 22
Product Dimension
Dimension image will be displayed here
