TFM-105-02-L-D-LC
Board-to-Board Connectors
TFM-105-02-L-D-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

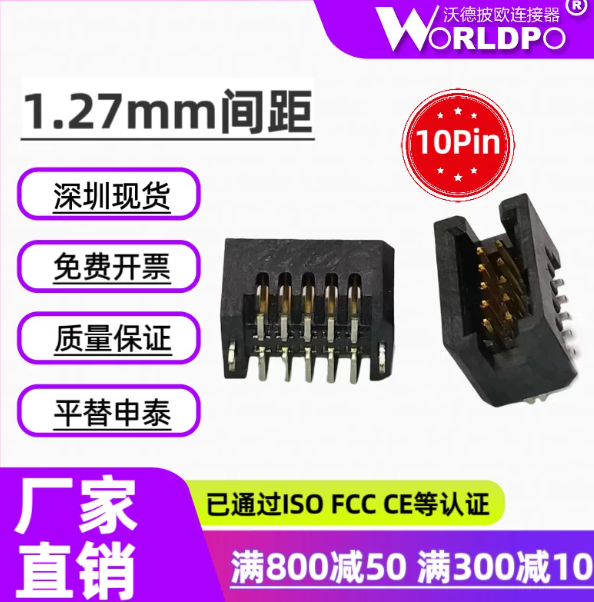

TFM-105-02-L-D-LC is compatible with WTFM-205H02LDLC.It is interchangeable with Samtec TFM-105-02-L/S-D-LC/A-K-TR.It is a male 2-row 10Pin SMT board-to-board connector with 1.27mm pitch, resistant to high and low temperatures.
Connector Series: WTFM
Number of Pins: 10
Connector Pitch: 1.27mm
Rows: 2
$1.38 $1.1
In Stock (6000)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TFM-105-02-L-D-LC
Connector Type Terminal
Connector Series WTFM
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Other
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 8μin（0.203μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
