TFM-110-02-L-D-A

Home > Board-to-Board Connectors > TFM-110-02-L-D-A

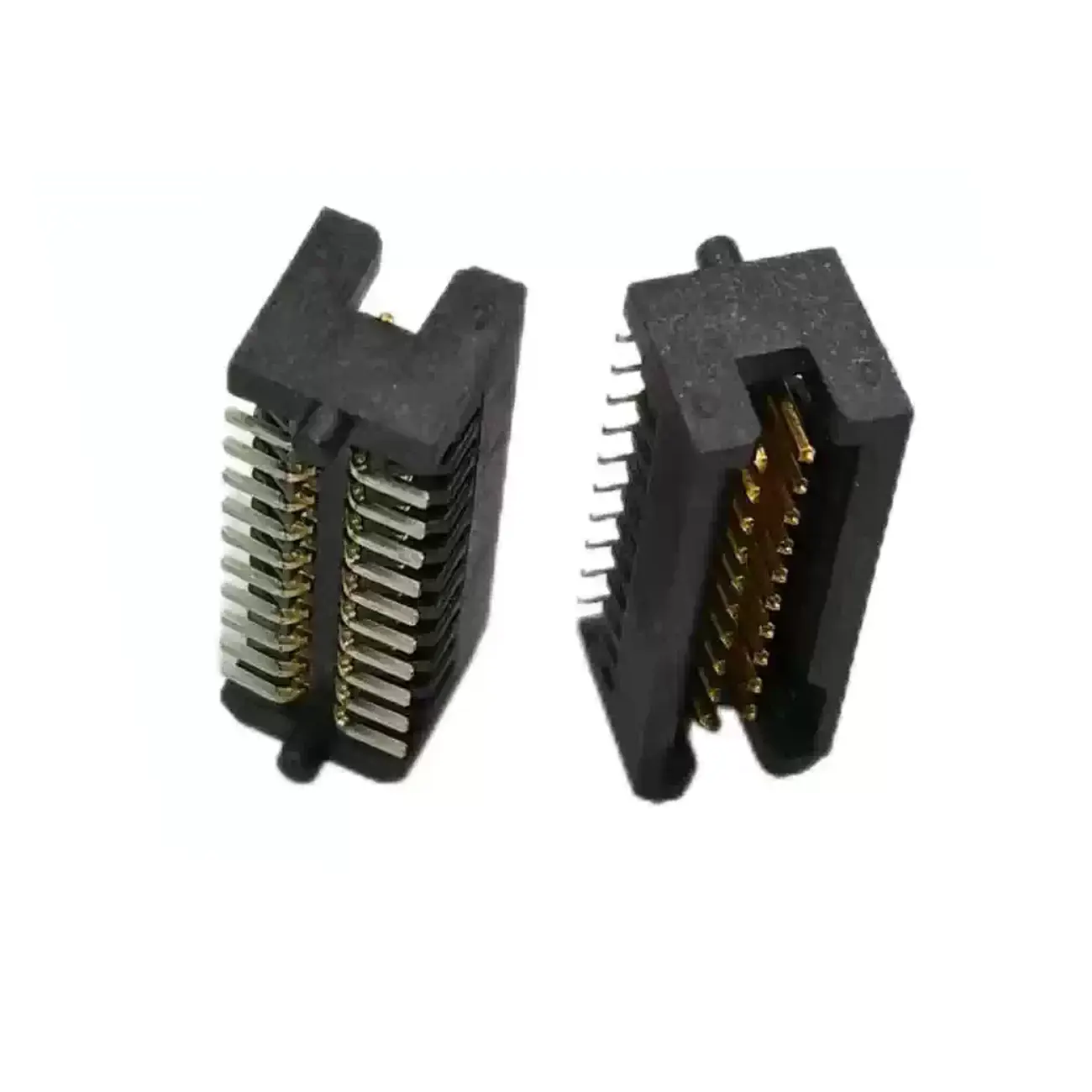

TFM-110-02-L-D-A
Board-to-Board Connectors
TFM-110-02-L-D-A
Mfr. Part No. : WTFM-2X10H02LDA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of TFM-110-02-L-D-A is WTFM-2X10H02LDA. TFM-110-02-L/S-D-LC/A-K-TR is a male 2-row 20-pin board-to-board connector with a 1.27mm pitch, featuring heat and cold resistance.
Connector Series: WTFM
Number of Pins: 20
Connector Pitch: 1.27mm
Rows: 2
$1.93 $1.73
In Stock (1200)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WTFM
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 20
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) 1.20～1.55
Wire Gauge (AWG) 16～20
Operating Temperature -55℃～125℃
Number of Circuits 20
