TOLC-105-22-S-Q-LC

Home > Board-to-Board Connectors > TOLC-105-22-S-Q-LC

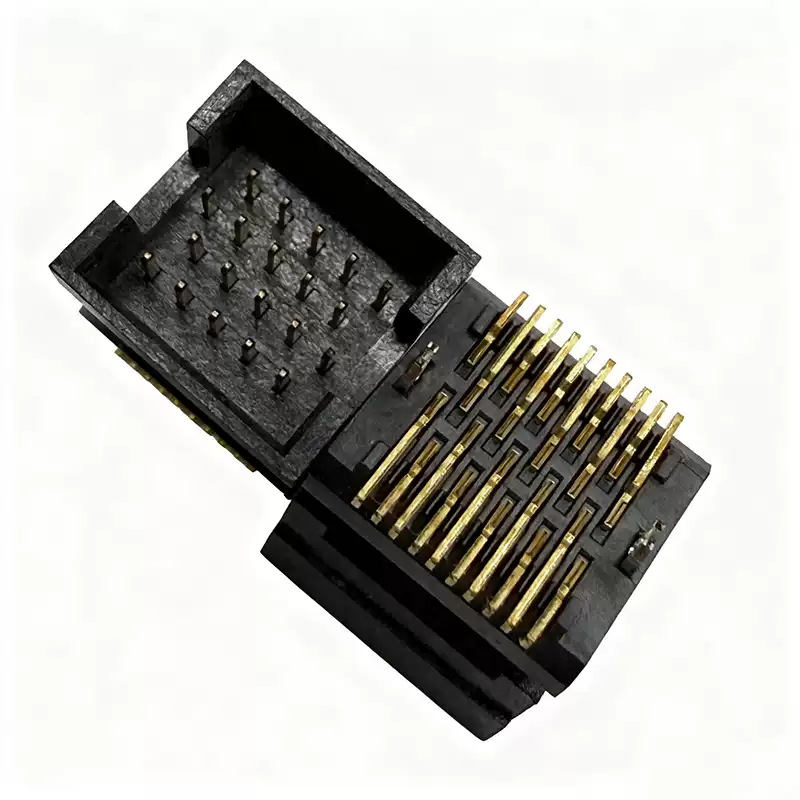

TOLC-105-22-S-Q-LC
Board-to-Board Connectors
TOLC-105-22-S-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
WTOLC-4X05H22SQLC is the direct replacement for the TOLC-105-22-S-Q-LC. It offers high & low frequency performance, high temperature and cold resistance, excellent durability for repeated mating, and oxidation resistance.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$20 $19.4
In Stock (1668)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-105-22-S-Q-LC
Connector Type Header
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Right-angle
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Ivory
Rated Voltage (VAC/VDC) 250
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 4μin（0.102μm）
Packaging Reel with Cover
Insulation Diameter (mm) 2.70
Wire Gauge (AWG) 28～30
Operating Temperature -55℃～125℃
Number of Circuits 320
Product Dimension
Dimension image will be displayed here
