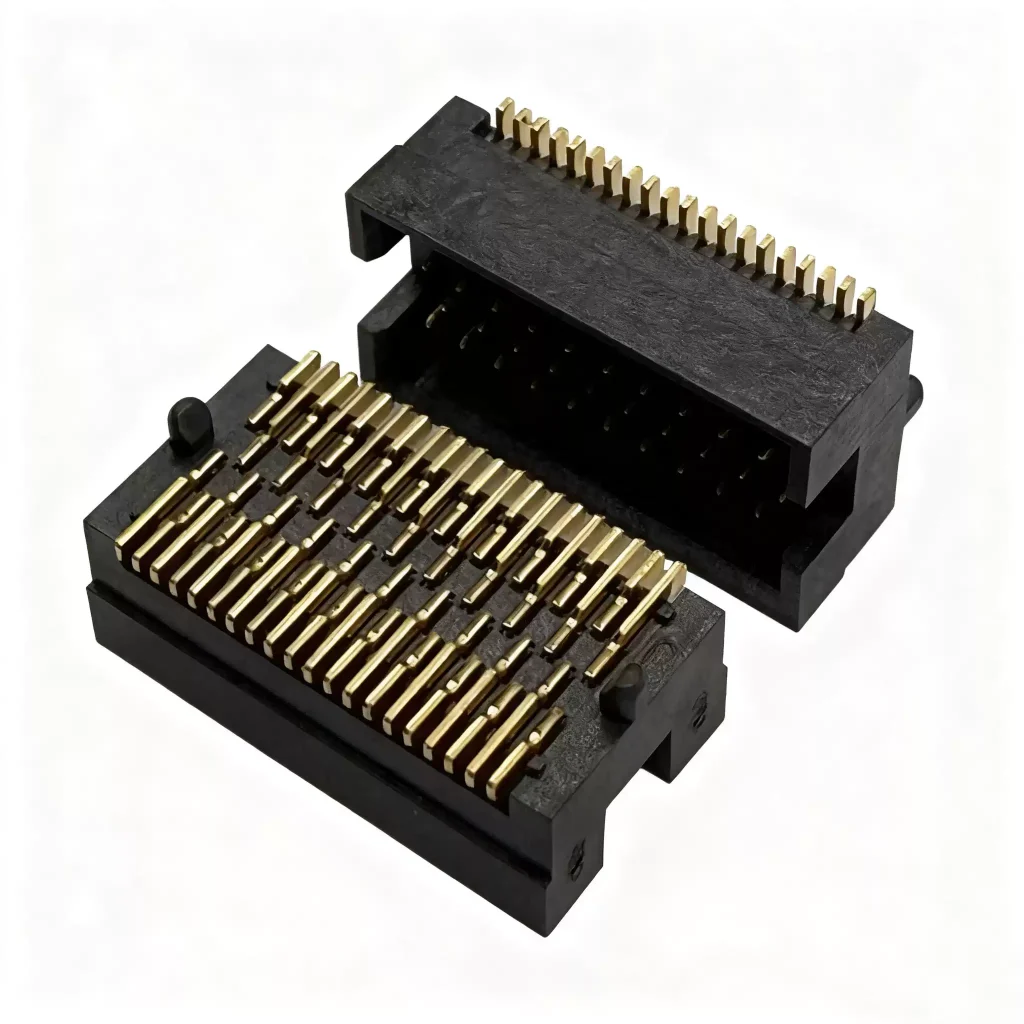

TOLC-110-02-F-Q-A

Home > Board-to-Board Connectors > TOLC-110-02-F-Q-A
TOLC-110-02-F-Q-A
Board-to-Board Connectors
TOLC-110-02-F-Q-A
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for TOLC-110-02-F-Q-A is WTOLC-4X10H02FQA. It is a product compatible with Samtec board-to-board connector model TOLC-110-02-L/F/S-Q-A-K-TR male header, featuring 1.27mm pitch, 4 rows and 40 pins, with heat and cold resistance.
Connector Series: WTOLC
Number of Pins: 40
Connector Pitch: 1.27mm
Rows: 4
$4.1 $3.6
In Stock (1548)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-110-02-F-Q-A
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
