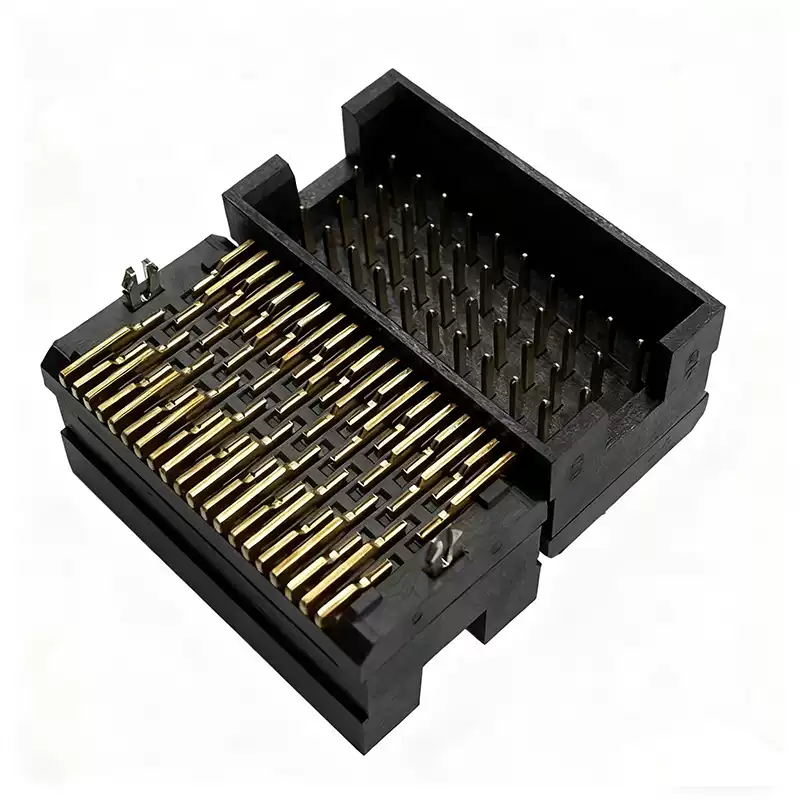

TOLC-110-12-F-Q-LC
Board-to-Board Connectors
TOLC-110-12-F-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for TOLC-110-12-F-Q-LC is WTOLC-4X10H12FQLC.It is fully compatible with Samtec SMT surface-mount male header connector TOLC-110-12-L/F/S-Q-LC-K, featuring 1.27mm pitch, 4-row 40Pin configuration. It supports high and low frequency signals, and delivers excellent performance of heat resistance, cold resistance, plugging endurance and oxidation resistance.
Connector Series: WTOLC
Number of Pins: 40
Connector Pitch: 1.27mm
Rows: 4
$4.6 $3.9
In Stock (2210)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-110-12-F-Q-LC
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
