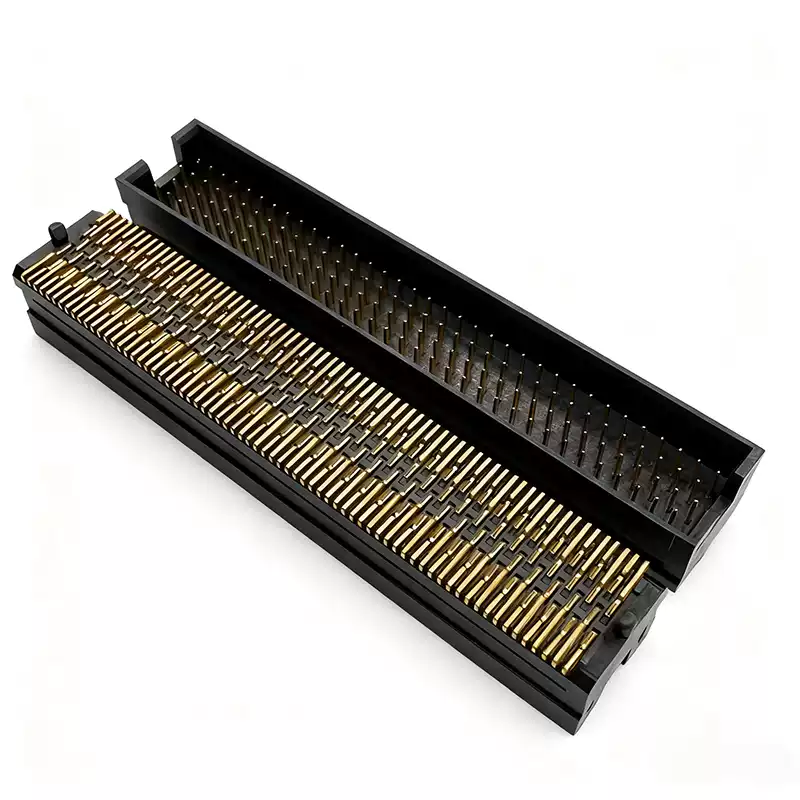

TOLC-135-12-F-Q-A
Board-to-Board Connectors
TOLC-135-12-F-Q-A
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The replacement part for TOLC-135-12-F-Q-A is WTOLC-4X35H12FQA.This is an SMT surface-mount male connector, model TOLC-135-12-L/F/S-Q-A-K. It adopts a 1.27mm pitch, 4-row and 140-pin structure, supporting high and low frequency signal transmission. The connector features heat resistance, cold resistance, high plugging durability and excellent oxidation resistance.
Connector Series: WTOLC
Number of Pins: 140
Connector Pitch: 1.27mm
Rows: 4
$10 $9.4
In Stock (2034)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-135-12-F-Q-A
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
