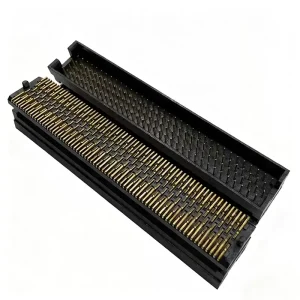

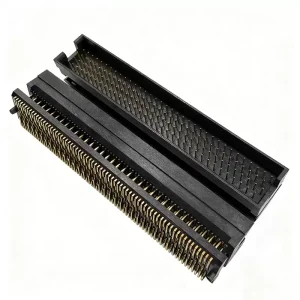

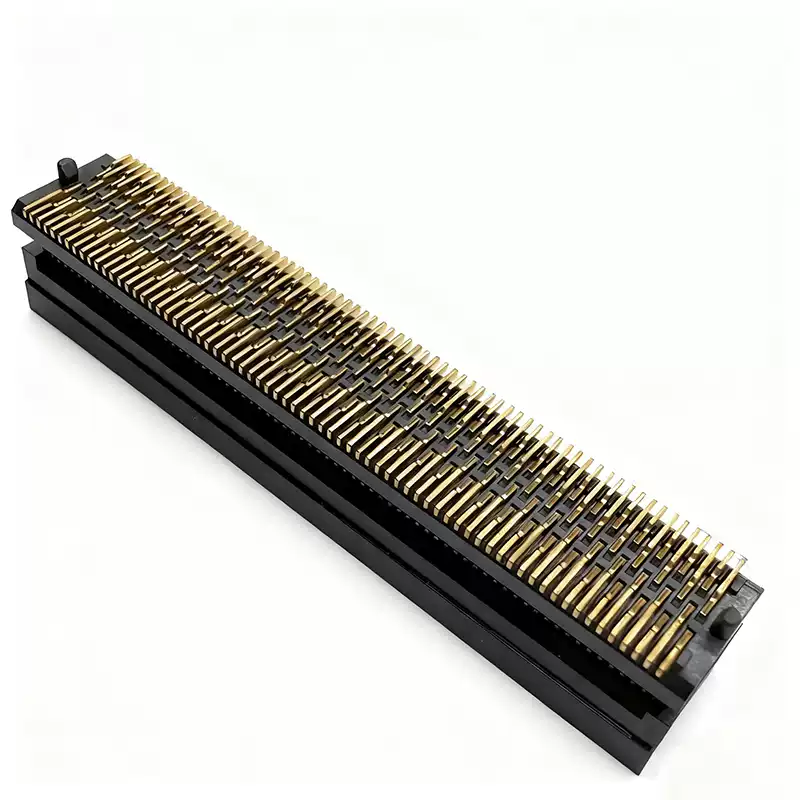

TOLC-135-22-S-Q-LC
Board-to-Board Connectors
TOLC-135-22-S-Q-LC
Mfr. Part No. : WTOLC-4X35H22SQLC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of TOLC-135-22-S-Q-LC is WTOLC-4X35H22SQLC. The TOLC-135-22-L/F/S-Q-LC-K-TR 1.27mm 4-row 140-pin connector features high and low frequency resistance, heat resistance, cold resistance, plugging resistance and oxidation resistance.
Connector Series: WTOLC
Number of Pins: 140
Connector Pitch: 1.27mm
Rows: 4
$10 $9.8
In Stock (1566)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Rows 4
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 150
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 26～32
Operating Temperature -55℃～125℃
Number of Circuits 228
