TOLC-140-12-S-Q-LC
Board-to-Board Connectors
TOLC-140-12-S-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

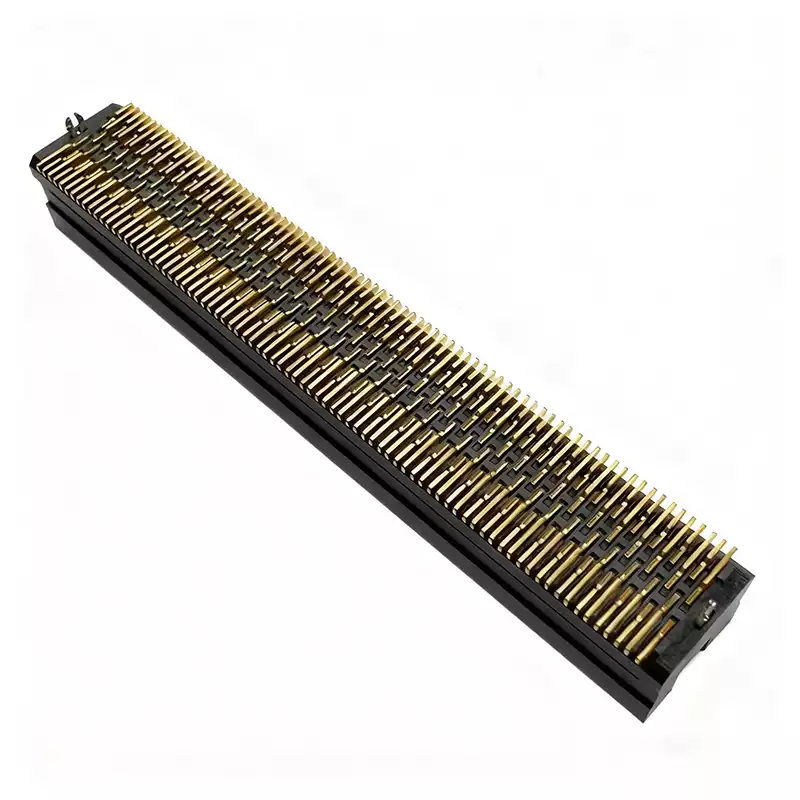

WTOLC-4X40H12SQLC is the direct replacement for the TOLC-140-12-S-Q-LC. It offers high & low frequency performance, high temperature and cold resistance, excellent durability for repeated mating, and oxidation resistance. The connector features 4 rows and 160 pins.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$70 $66.9
In Stock (1769)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-140-12-S-Q-LC
Connector Type Housing
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Brown
Rated Voltage (VAC/VDC) 125
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 4μin（0.102μm）
Packaging Reel
Insulation Diameter (mm) 2.42
Wire Gauge (AWG) 22～24
Operating Temperature -55℃～125℃
Number of Circuits 200
Product Dimension
Dimension image will be displayed here
