TOLC-145-02-L-Q-LC

Home > Board-to-Board Connectors > TOLC-145-02-L-Q-LC

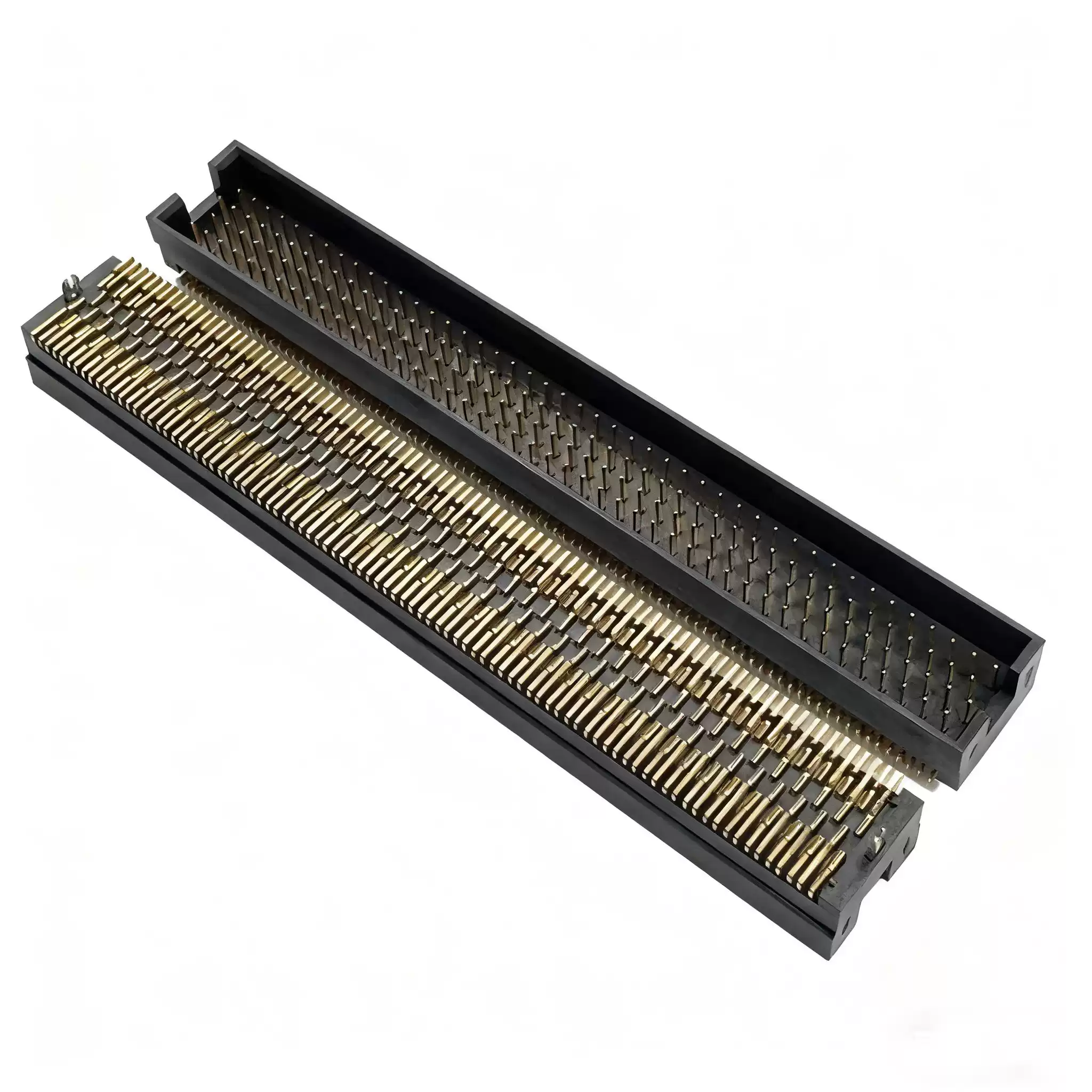

TOLC-145-02-L-Q-LC
Board-to-Board Connectors
TOLC-145-02-L-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for TOLC-145-02-L-Q-LC is WETOLC-4X45H02LQLC. It is compatible with the Samtec SMT surface-mount male connector TOLC-145-02-L/F/S-Q-LC-K with 1.27mm pitch, 4 rows and 180 pins, featuring high and low frequency performance, heat resistance, cold resistance, plugging endurance and oxidation resistance.
Connector Series: WTOLC
Number of Pins: 180
Connector Pitch: 1.27mm
Rows: 4
$12.1 $11.6
In Stock (3086)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model TOLC-145-02-L-Q-LC
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
