Name: ASP-122952-01
Brand: Board-to-Board Connectors
SKU: ASP-122952-01
Price: 7.15 USD
Availability: InStock

Board-to-Board Connectors

ASP-122952-01

Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

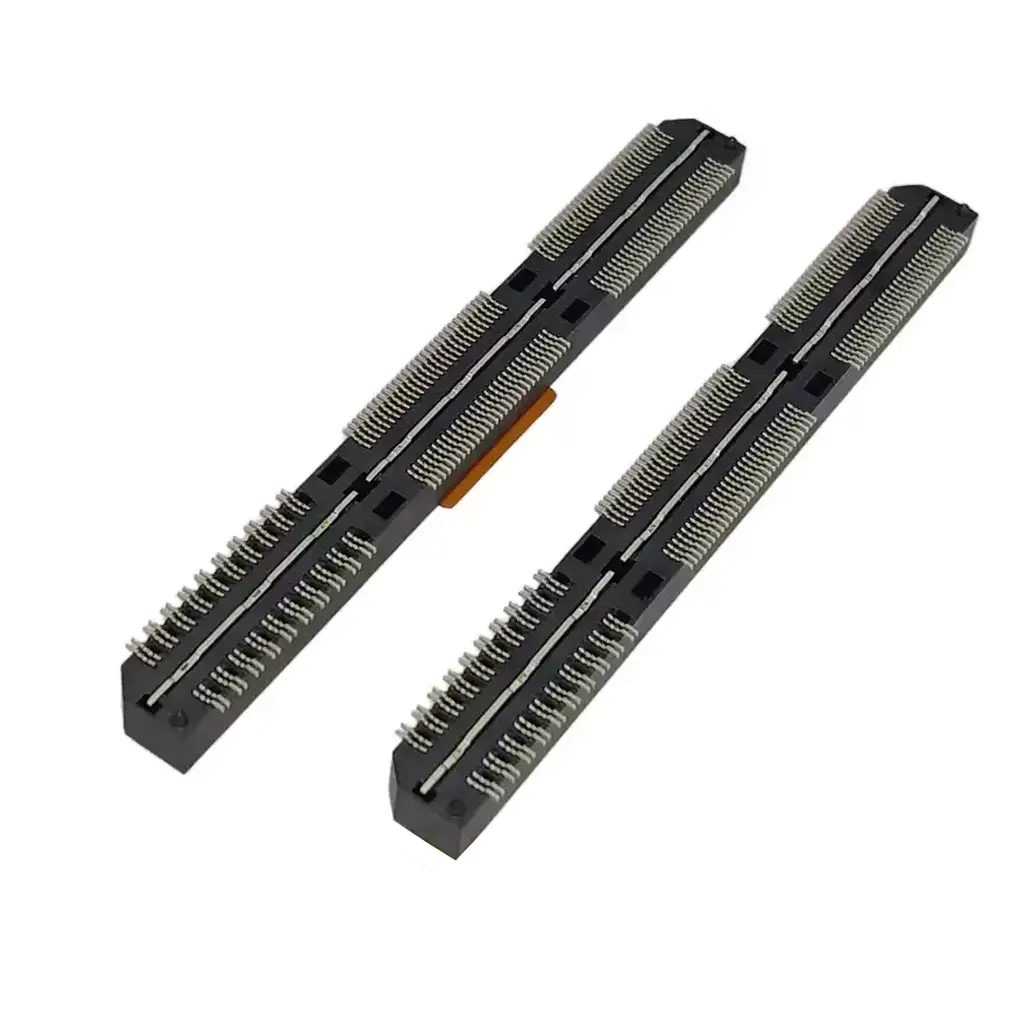

ASP-122952-01 Compatible Model: WASPM-122952-01. ASP-122952-01 Male Header mates with ASP-122953-01 Female Receptacle, 2 Rows, 160 Positions, Stack Height 5mm. Board-to-Board Connector, Contact Surface Finish: Gold Plated.

🏷 Asp Samtec Part

Connector Series: WASPM

Number of Pins: 180

Connector Pitch: 1.27mm

Rows: 2

$7.36 $7.15

In Stock (1999)

Request a Quote

Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category	Board-to-Board Connectors
Model	ASP-122952-01
Connector Type	Terminal
Connector Series	WASPM
Connector Pitch	1.27mm
Terminal Interface	Through-Hole, Vertical (DIP)
Orientation	Vertical
Material / Metal	Phosphor Bronze
Rows	2
Color	Deep Pink
Rated Voltage (VAC/VDC)	125
Rated Current per Contact (Max.) (A)	1～2A
Plating	Selective Gold/Tin Plating (Au/Sn)
Plating Thickness	3μin（0.076μm）
Packaging	Tape and Reel
Insulation Diameter (mm)	3.90
Wire Gauge (AWG)	20～26
Operating Temperature	-55℃～150℃
Number of Circuits	480
