ASP-134602-02

Home > Board-to-Board Connectors > ASP-134602-02

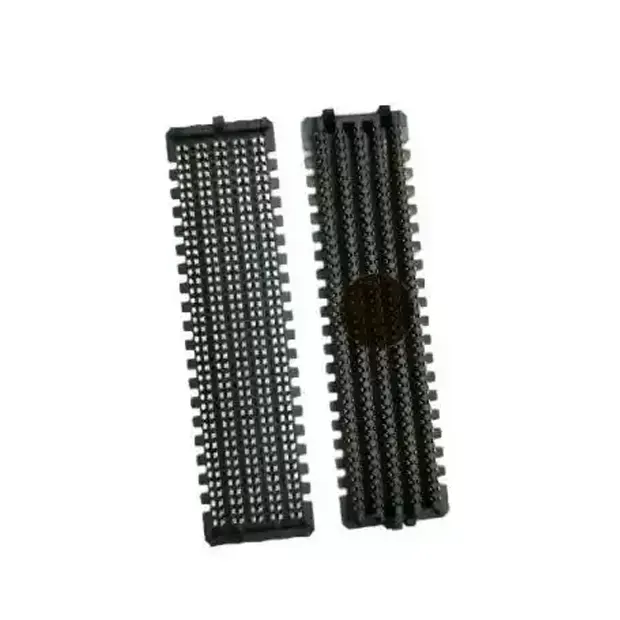

WASPM 399-Position 1.27mm Board-to-Board Connectors: Replacement for SAMTEC ASP-134602-02

ASP-134602-02
Board-to-Board Connectors
ASP-134602-02
Mfr. Part No. : WASP-134602-02
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
ASP-134602-02 Compatible Model: WASP-134602-02. Compatible with SAMTEC ASP-134602-02 Male Header, 10 Rows, 400 Positions, 1.27mm Pitch, Board-to-Board Connector.
🏷 1.27 mm high‑density connectors 399 pin connector Asp Samtec Part
Connector Series: WASPM
Number of Pins: 399
Connector Pitch: 1.27mm
Rows: 10
$11.3 $10.25
In Stock (1995)

Typical lead time: contact for quote Packaging: Multi-Layer Reel

Request a Quote
Documentation View all

Download connector datasheets. PDFs include product overview, features, pin definitions, pinout diagrams, and technical specifications.

EN Worldpo Product Catalog & Specifications Size: 3 MB Download PDF
ASP-134602-02 Specification Comparison

Specification comparison is for reference only. For detailed drawings, datasheets, or custom specs, email us at connector@worldpo.com.

Part Number ASP-134602-02 ASP-134602-01 ASP-134488-01 ASP-134486-01
Connector Type Terminal Terminal Terminal Terminal
Connector Series WASPM WASPM WASPM WASPF
Connector Pitch 1.27mm 1.27mm 1.27mm 1.27mm
Rows 10 10 10 10
Number of Pins 399 400 400 400
Terminal Interface Through-Hole, Vertical (DIP) Surface Mount (SMD) Surface Mount (SMD) Surface Mount (SMD)
Orientation Vertical Vertical Vertical Vertical
Material / Metal High Copper Alloy High Copper Alloy High Copper Alloy High Copper Alloy
Color Moss Green Natural Natural Natural
Rated Voltage (VAC/VDC) 450 240 240 240
Rated Current per Contact (Max.) (A) 3～5A Other Other Other
Plating Selective Gold/Tin Plating (Au/Sn) Tin Plating (Sn) Tin Plating (Sn) Tin Plating (Sn)
Plating Thickness Special Material + Plating Combination Other Other Other
Packaging Multi-Layer Reel Multi-Layer Reel Tray with Mylar Film Reel with Cover
Insulation Diameter (mm) 3.90 3.90 3.90 5.08
Wire Gauge (AWG) 18 AWG Dual Wall 14～16 16～24 10
Operating Temperature -55℃～125℃ -55℃～125℃ -55℃～125℃ -55℃～125℃
Number of Circuits 280 99 81 100
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WASPM
Connector Pitch 1.27mm
Rows 10
Number of Pins 399
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal High Copper Alloy
Color Moss Green
Rated Voltage (VAC/VDC) 450
Rated Current per Contact (Max.) (A) 3～5A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness Special Material + Plating Combination
Packaging Multi-Layer Reel
Insulation Diameter (mm) 3.90
Wire Gauge (AWG) 18 AWG Dual Wall
Operating Temperature -55℃～125℃
Number of Circuits 280
Product FAQ

Have a Question?

Our technical team typically replies within 1 business day.

Your information is used only to respond to this inquiry.

Frequently Asked Questions

3 questions

  • Q: What is the pitch and pin count of this connector? Is it in stock?

    This WASPM series part ASP-134602-02 has a pitch of 1.27mm and 399 pins. Current availability: 1995. For datasheets and drawings, please contact our technical team or use the form above.

  • Q: Hi, is the ASP-134602-02 connector male or female, and which mating connector part numbers can be used with it?

    Hi, the ASP-134602-02 connector is a Male connector. For mating use, this series pairs with ASPF. Recommended mating ASPF part numbers include: ASP-134489-04, ASP-134606-06, ASP-184329-06, ASP-134486-06, ASP-134488-03, ASP-134487-03, ASP-134604-08, ASP-134488-04-RA-K-TR. You can search these part numbers on this site for full specs and availability.
    Asked: 2026-08-13 17:32:38 Answered: 2026-08-13 17:32:38

  • Q: Hi, what are the differences between the ASP-134602-02 connector and ERF8-013-07.0-S-DV in terms of Rows, Plating, and Connector Pitch?

    Hi, ASP-134602-02 and ERF8-013-07.0-S-DV differ in all three parameters — Rows, Plating, and Connector Pitch. Specifically, ASP-134602-02 has Rows is 10, Plating is Selective Gold/Tin Plating (Au/Sn), Connector Pitch is 1.27mm; while ERF8-013-07.0-S-DV has Rows is 2, Plating is Silver Plating, Connector Pitch is 0.80mm. When selecting, compare orientation, termination process, and material needs for your application. For a full side-by-side specification comparison, please contact our online support.
    Asked: 2026-08-13 17:32:00 Answered: 2026-08-13 17:32:00
Product Dimension
Dimension image will be displayed here
