ASP-134603-01

Home > Board-to-Board Connectors > ASP-134603-01

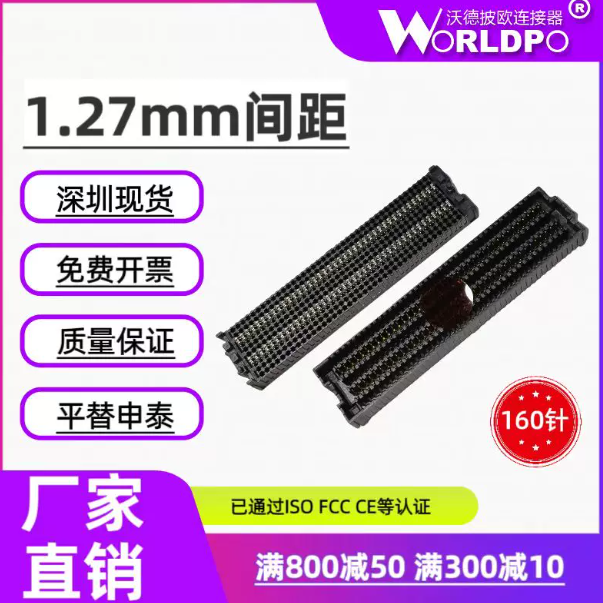

ASP-134603-01
Board-to-Board Connectors
ASP-134603-01
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The alternative product for ASP-134603-01 is WASPF-4X40H06.5LAKTR.Models: ASP-134488, ASP-134486, ASP-134603, 4604, 184330, 184329, ASP-134602, 88588-01Temperature resistance
Connector Series: Other
Number of Pins: 160
Connector Pitch: 1.27mm
Rows: 4
$8 $7.8
In Stock (99900)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ASP-134603-01
Connector Type Terminal
Connector Series Other
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
