FTSH-102-01-F-D

Home > Board-to-Board Connectors > FTSH-102-01-F-D
FTSH-102-01-F-D
Board-to-Board Connectors
FTSH-102-01-F-D
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

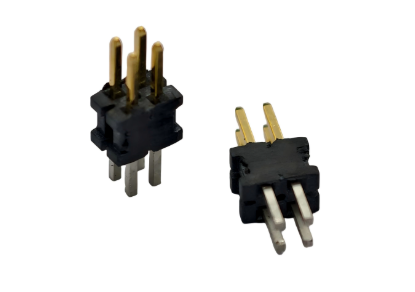

The compatible product for FTSH-102-01-F-D is WFTSH-2X2H01FD, a double‑row pin male connector (2 rows, 4 pins, 1.27 mm pitch) compatible with Samtec FTSH‑102‑01‑L/F‑D, featuring heat and cold resistance.
Connector Series: Other
Number of Pins: 4
Connector Pitch: 1.27mm
Rows: 2
$0.15 $0.13
In Stock (1254)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-102-01-F-D
Connector Type Terminal
Connector Series Other
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) 240
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
