CLM-104-02-F-D

Home > Board-to-Board Connectors > CLM-104-02-F-D

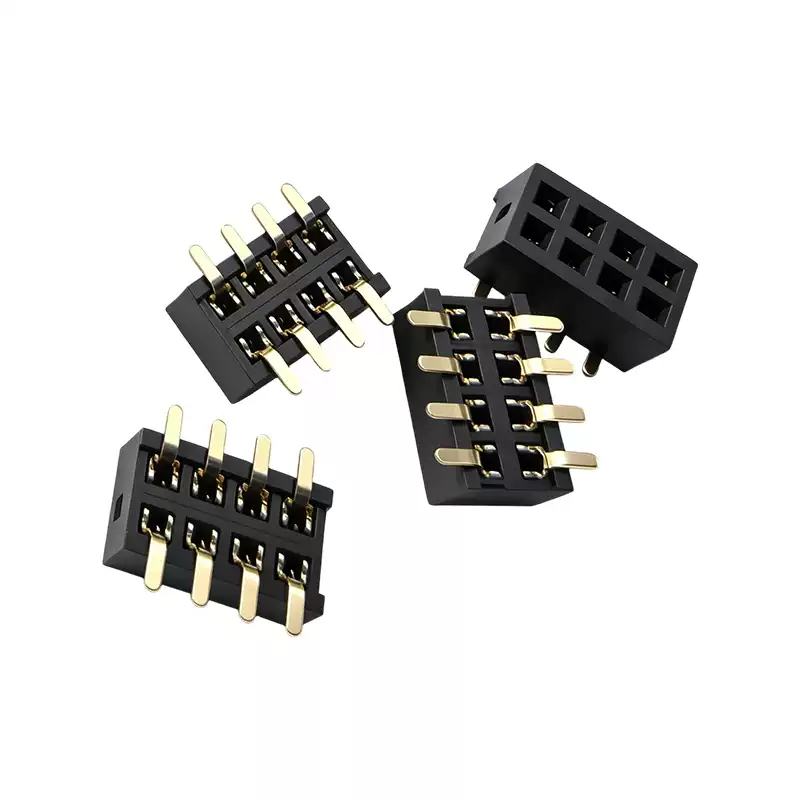

CLM-104-02-F-D
Board-to-Board Connectors
CLM-104-02-F-D
Mfr. Part No.: WCLM-104H02FD
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of CLM-104-02-F-D is WCLM-104H02FD. The clm-104-02-f-d male board-to-board connector features a 1.00mm pitch and boasts excellent heat and cold resistance.
Connector Series: WCLM
Number of Pins: 8
Connector Pitch: 1.00mm
Rows: 2
$0.5 $0.48
In Stock (1256)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WCLM
Connector Pitch 1.00mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 240
Rated Current per Contact (Max.) (A) 0.5～1A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 0.98
Wire Gauge (AWG) 14
Operating Temperature -55℃～125℃
Number of Circuits 8
Product Dimension
Dimension image will be displayed here
