CLM-107-02-F-D

Home > Board-to-Board Connectors > CLM-107-02-F-D
Board-to-Board Connectors

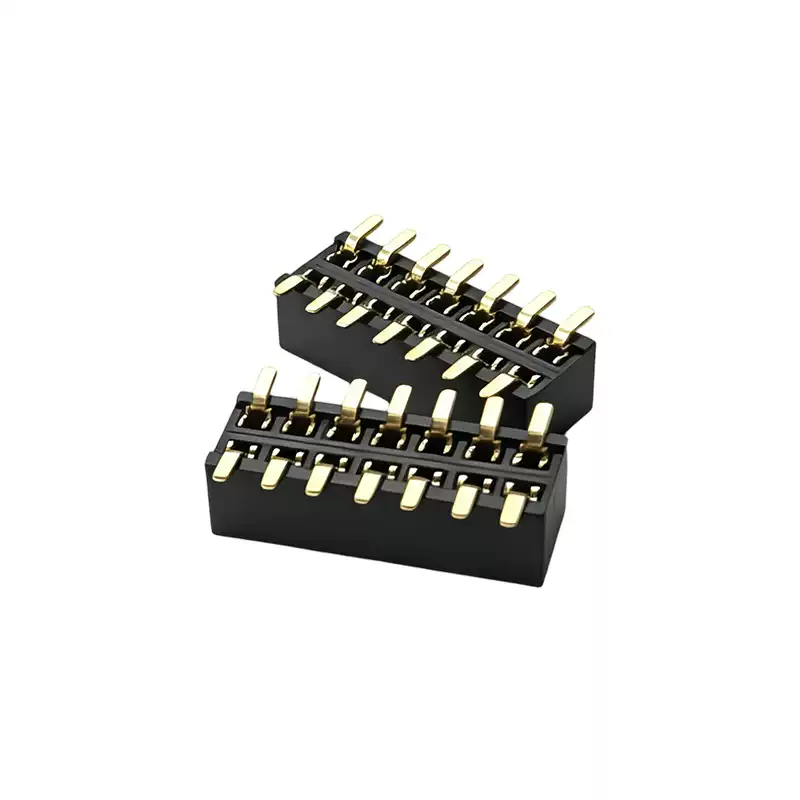

CLM-107-02-F-D
Mfr. Part No.: WCLM-107H02FD
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of CLM-107-02-F-D is WCLM-107H02FD. CLM-107-02-F-D is a male board-to-board connector with a 1.00mm pitch, featuring heat and cold resistance.
Connector Series: WCLM
Number of Pins: 14
Connector Pitch: 1.00mm
Rows: 2
$0.76 $0.73
In Stock (2634)
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WCLM
Connector Pitch 1.00mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 20
Rated Current per Contact (Max.) (A) 2~3A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 28~30
Operating Temperature -55℃~125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
