Name: CLP-102-04-G-D-TR
Brand: WORLDPO
SKU: CLP-102-04-G-D-TR
Price: 0.50 USD
Availability: InStock

Board-to-Board Connectors

CLP-102-04-G-D-TR

Mfr. Part No. : WCLP-102H04GDTR

Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

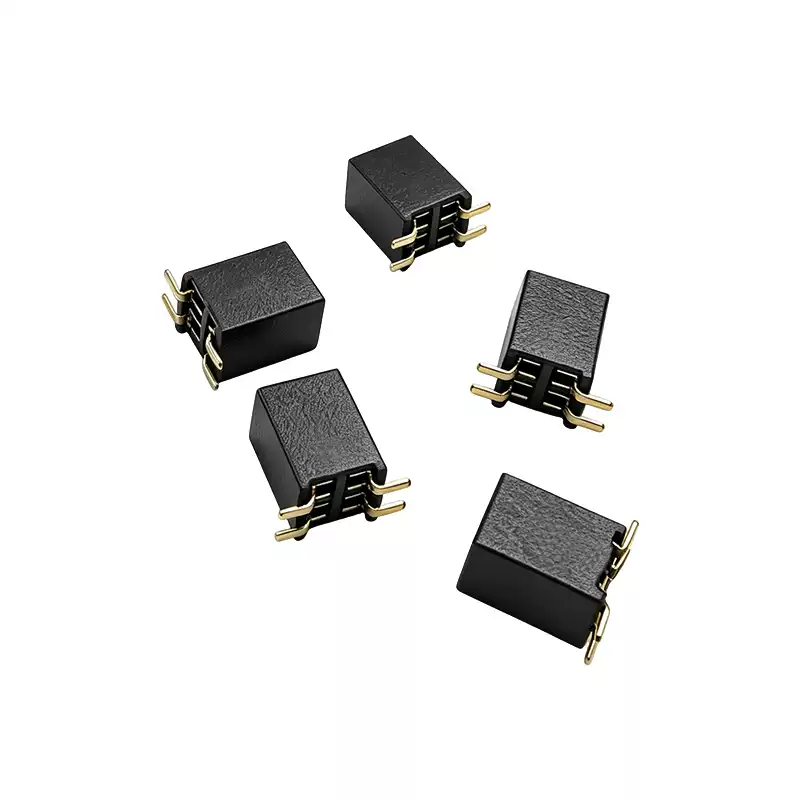

The compatible model of CLP-102-04-G-D-TR is WCLP-102H04GDTR. CLP-102-04-G-D-TR is a dual-row SMT female socket with a 1.27mm pitch, 2 rows and 4 pins, and a combined height of 7mm. It features double wiping contacts, bidirectional insertion compatibility, high reliability, full gold plating, high-speed performance and a low-profile design.

🏷 4 pin connector

Connector Series: WCLP

Number of Pins: 4

Connector Pitch: 1.27mm

Rows: 2

$0.53 $0.5

In Stock (2232)

Request a Quote

Documentation View all

Download connector datasheets. PDFs include product overview, features, pin definitions, pinout diagrams, and technical specifications.

EN Worldpo Product Catalog & Specifications Size: 3 MB Download PDF

Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category	Board-to-Board Connectors
Connector Type	Terminal
Connector Series	WCLP
Connector Pitch	1.27mm
Rows	2
Terminal Interface	Surface Mount (SMD)
Orientation	Vertical
Material / Metal	High Copper Alloy (for pins/contacts)
Color	Black
Rated Voltage (VAC/VDC)	25
Rated Current per Contact (Max.) (A)	3～5A
Plating	Gold Plating (Au)
Plating Thickness	Other
Packaging	Reel
Insulation Diameter (mm)	4.00
Wire Gauge (AWG)	18～22
Operating Temperature	-55℃～125℃
Number of Circuits	280

Have a Question?

Our technical team typically replies within 1 business day.

Your question *

Name *

Phone / WhatsApp / Email *

Your information is used only to respond to this inquiry.

Frequently Asked Questions

3 questions

Q: What is the pitch and pin count of this connector? Is it in stock?

This WCLP series part CLP-102-04-G-D-TR has a pitch of 1.27mm and 4 pins. Current availability: 2232. For datasheets and drawings, please contact our technical team or use the form above.
Q: Hi, is the CLP-102-04-G-D-TR connector male or female, and which mating connector part numbers can be used with it?

Hi, the CLP-102-04-G-D-TR connector is a Female connector. For mating use, this series pairs with FTSH. Recommended mating FTSH part numbers include: FTSH-102-01-L-DV, FTSH-104-01-L-DV-K-TR, FTSH-103-03-L-DV-K-TR, FTSH-102-02-F-DV-A-K-TR, FTSH-107-02-F-DV-K-TR, FTSH-103-01-L-DV-K-TR, FTSH-105-01-F-DV, FTSH-102-02-F-DV-K-TR. You can search these part numbers on this site for full specs and availability.

Asked: 2026-08-13 17:32:38 Answered: 2026-08-13 17:32:38
Q: Hi, what are the differences between the CLP-102-04-G-D-TR connector and FTSH-105-01-L-DV-K-P in terms of Contact Material, Color / Resin, and Current (Max)?

Hi, for CLP-102-04-G-D-TR and FTSH-105-01-L-DV-K-P, Contact Material is the same (High Copper Alloy (for pins/contacts)). The main differences are in Color / Resin and Current (Max): CLP-102-04-G-D-TR has Color / Resin is Black, Current (Max) is 3～5A; while FTSH-105-01-L-DV-K-P has Color / Resin is Natural, Current (Max) is Other. Choose based on termination process and material requirements. Contact online support for a deeper parameter comparison.

Asked: 2026-08-13 17:32:00 Answered: 2026-08-13 17:32:00

Product Dimension

Dimension image will be displayed here
