WCLP 12-Position 1.27mm Board-to-Board Connectors: Replacement for SAMTEC CLP-106-04-G-D-TR

CLP-106-04-G-D-TR
Board-to-Board Connectors
CLP-106-04-G-D-TR
Mfr. Part No. : WCLP-106H04GDTR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

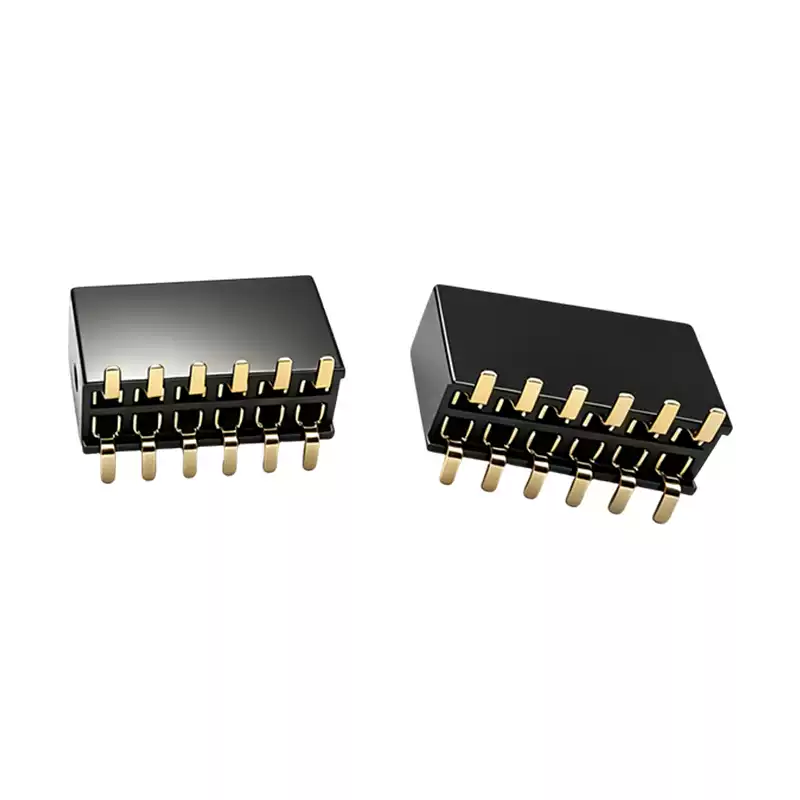

The compatible model of CLP-106-04-G-D-TR is WCLP-106H04GDTR. CLP-106-04-G-D-TR is a dual-row SMT female connector with a 1.27 mm pitch, 2 rows and 12 pins, and a mated height of 7 mm. It features double-wiping contacts, bidirectional insertion compatibility, high reliability, full gold plating, high-speed performance and a low-profile design.
🏷 12 pin connector
Connector Series: WCLP
Number of Pins: 12
Connector Pitch: 1.27mm
Rows: 2
$0.96 $0.92
In Stock (2154)
Request a Quote
Documentation View all

Download connector datasheets. PDFs include product overview, features, pin definitions, pinout diagrams, and technical specifications.

EN Worldpo Product Catalog & Specifications Size: 3 MB Download PDF
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WCLP
Connector Pitch 1.27mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Color Black
Rated Voltage (VAC/VDC) 30
Rated Current per Contact (Max.) (A) 3～5A
Plating Gold Plating (Au)
Plating Thickness Other
Packaging Reel
Insulation Diameter (mm) 3.10
Wire Gauge (AWG) 12
Operating Temperature -55℃～125℃
Number of Circuits 280
Product FAQ

Have a Question?

Our technical team typically replies within 1 business day.

Your information is used only to respond to this inquiry.

Frequently Asked Questions

3 questions

  • Q: What is the pitch and pin count of this connector? Is it in stock?

    This WCLP series part CLP-106-04-G-D-TR has a pitch of 1.27mm and 12 pins. Current availability: 2154. For datasheets and drawings, please contact our technical team or use the form above.

  • Q: Hi, is the CLP-106-04-G-D-TR connector male or female, and which mating connector part numbers can be used with it?

    Hi, the CLP-106-04-G-D-TR connector is a Female connector. For mating use, this series pairs with FTSH. Recommended mating FTSH part numbers include: FTSH-109-02-F-DV-K-TR, FTSH-102-01-L-DV-A, FTSH-105-03-F-DV, FTSH-108-01-F-DV-K-TR, FTSH-105-01-F-DV-K-TR, FTSH-103-03-F-DV-A, FTSH-104-01-L-DV-K-TR, FTSH-107-01-L-DV-A. You can search these part numbers on this site for full specs and availability.
    Asked: 2026-08-13 17:32:38 Answered: 2026-08-13 17:32:38

  • Q: Hi, what are the differences between the CLP-106-04-G-D-TR connector and TFM-135-01-L-D-RA in terms of Operating Temperature, Contact Material, and Type?

    Hi, CLP-106-04-G-D-TR and TFM-135-01-L-D-RA are identical in Operating Temperature, Contact Material, and Type, with values of -55℃～125℃, High Copper Alloy (for pins/contacts), Terminal respectively. Even with these matching core parameters, the two products may still differ in series, pitch, or other specs — we recommend reviewing the full datasheet for final selection. Feel free to contact online support if you have questions.
    Asked: 2026-08-13 17:32:00 Answered: 2026-08-13 17:32:00
Product Dimension
Dimension image will be displayed here
