ERM8-005-05.0-F-DV-K-TR

Home > Board-to-Board Connectors > ERM8-005-05.0-F-DV-K-TR

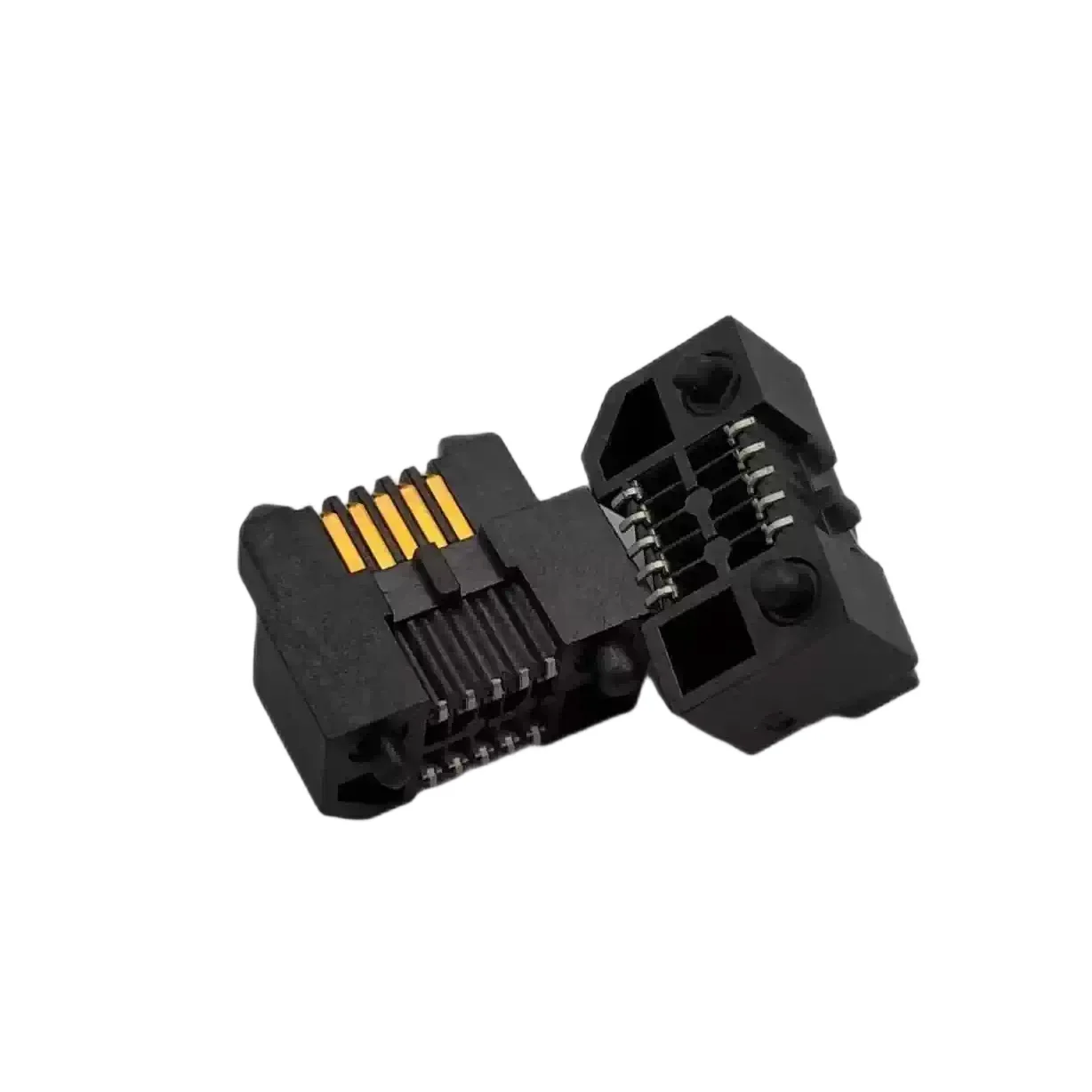

ERM8-005-05.0-F-DV-K-TR
Board-to-Board Connectors
ERM8-005-05.0-F-DV-K-TR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERM8-005-05.0-F-DV-K-TR is WERM8-2X5H05.0FDVKTR. ERM8-005-05.0-L/F/S-DV-K-TR is a 10-pin male connector with a mated height of 10/12 mm. This board-to-board connector features excellent heat resistance and cold resistance.
Connector Series: WERM8
Number of Pins: 10
Connector Pitch: 0.80mm
Rows: 2
$2 $1.7
In Stock (1020)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERM8-005-05.0-F-DV-K-TR
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
