ERM8-010-02.0-L-DV-K-TR

Home > Board-to-Board Connectors > ERM8-010-02.0-L-DV-K-TR
ERM8-010-02.0-L-DV-K-TR
Board-to-Board Connectors
ERM8-010-02.0-L-DV-K-TR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

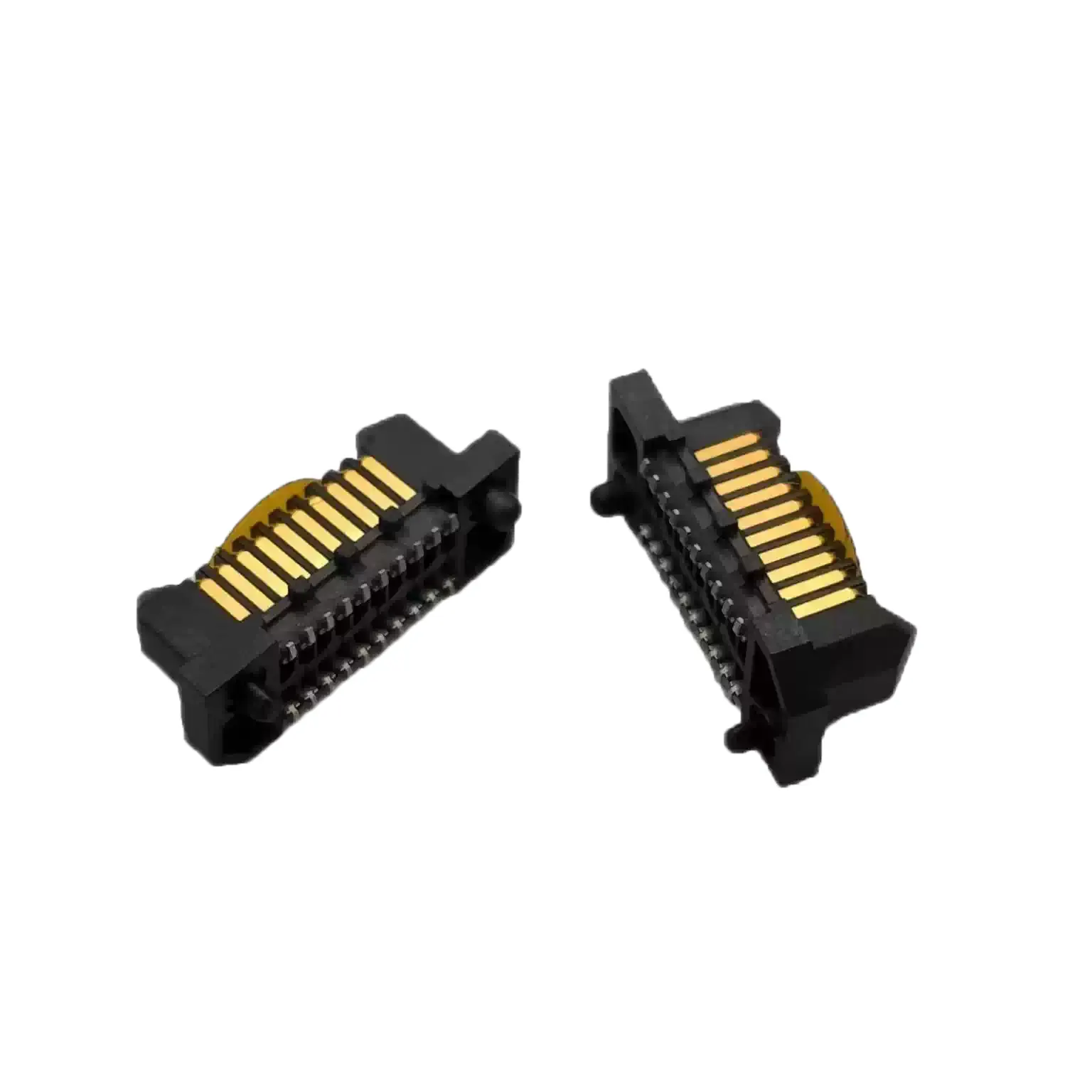

The compatible model of ERM8-010-02.0-L-DV-K-TR is WERM8-2X10H02.0LDVKTR. ERM8-010-02.0-L/F/S-DV-K-TR is a male connector with 2 rows and 20 pins, featuring a mated height of 7/9 mm. This board-to-board connector is resistant to both high temperature and low temperature.
Connector Series: WERM8
Number of Pins: 20
Connector Pitch: 0.80mm
Rows: 2
$2.2 $1.9
In Stock (1330)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERM8-010-02.0-L-DV-K-TR
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
