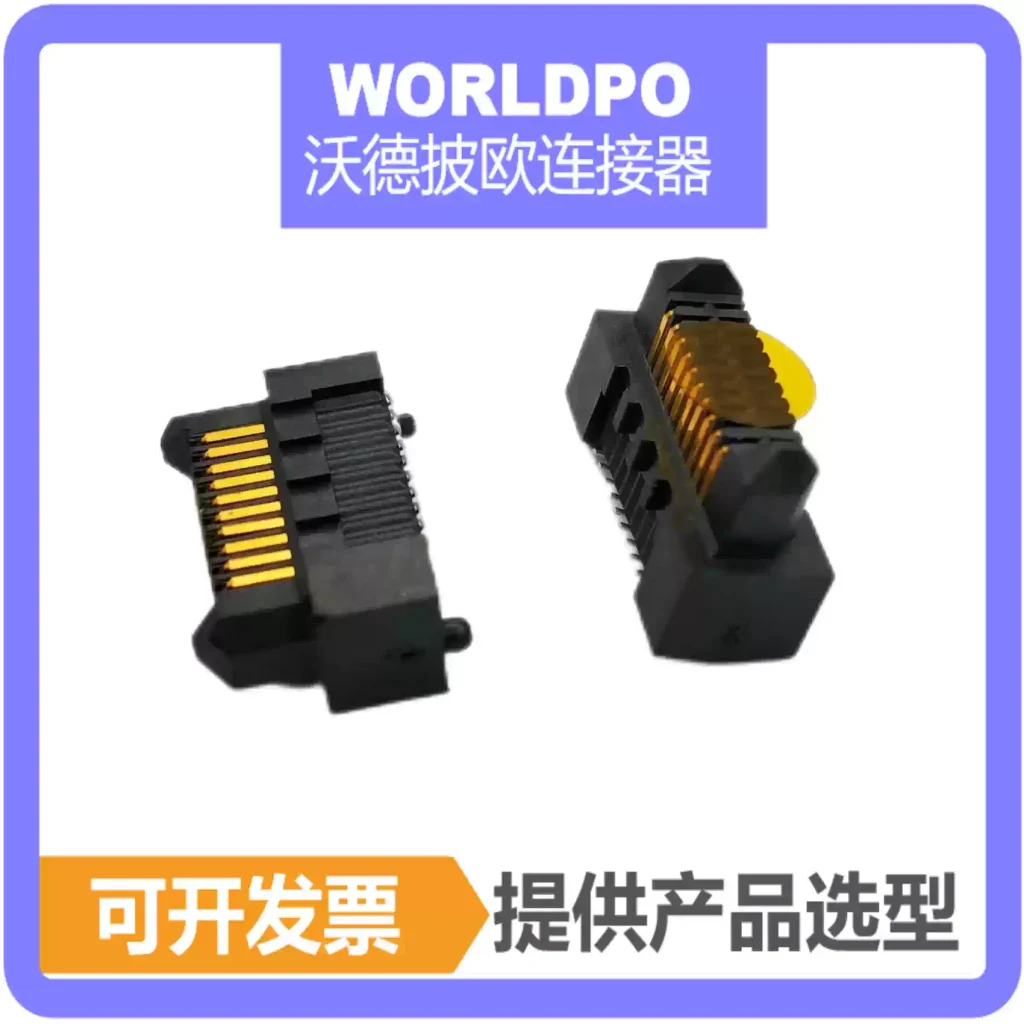

ERM8-010-05.0-F-DV-K-TR

Home > Board-to-Board Connectors > ERM8-010-05.0-F-DV-K-TR
ERM8-010-05.0-F-DV-K-TR
Board-to-Board Connectors
ERM8-010-05.0-F-DV-K-TR
Mfr. Part No. : WERM8-2X10H05.0FDVKTR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERM8-010-05.0-F-DV-K-TR is WERM8-2X10H05.0FDVKTR. ERM8-010-05.0-L/F/S-DV-K-TR is a male connector with 2 rows and 20 pins, featuring a mating height of 10/12 mm. This board-to-board connector is resistant to both high temperatures and low temperatures.
Connector Series: WERM8
Number of Pins: 20
Connector Pitch: 0.80mm
Rows: 2
$2.6 $2.3
In Stock (2311)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Rows 2
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy
Color Red + Au-plated (15μin)
Rated Voltage (VAC/VDC) 50
Rated Current per Contact (Max.) (A) 0.5～1A
Plating Nickel Plating
Plating Thickness Phosphor Bronze - Selective Gold/Tin Plating (Au/Sn) - 5μin (0.127μm)
Packaging Rigid Tray with Cover
Insulation Diameter (mm) 2.78
Wire Gauge (AWG) 26～32
Operating Temperature -55℃～125℃
Number of Circuits 50
Product Dimension
Dimension image will be displayed here
