ERM8-013-02.0-L-DV

Home > Board-to-Board Connectors > ERM8-013-02.0-L-DV

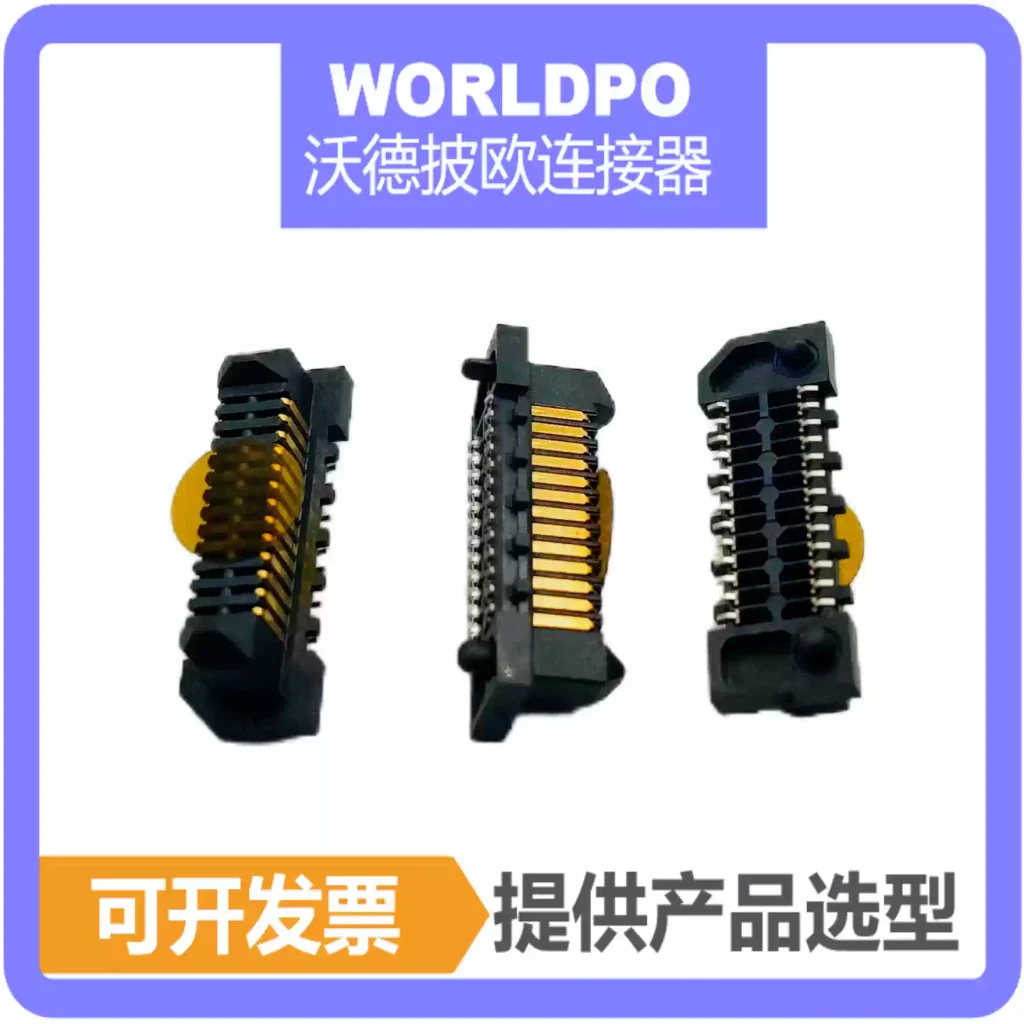

ERM8-013-02.0-L-DV
Board-to-Board Connectors
ERM8-013-02.0-L-DV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERM8-013-02.0-L-DV is WERM8-2X13H02.0LDV. ERM8-013-02.0-L/S-DV-K-TR is a male connector with 2 rows and 26 pins, combined heights of 9 mm and 7 mm. This board-to-board connector features good heat resistance and cold resistance.
Connector Series: WERM8
Number of Pins: 26
Connector Pitch: 0.80mm
Rows: 2
$2.8 $2.5
In Stock (2258)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERM8-013-02.0-L-DV
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy
Rows 2
Color Red
Rated Voltage (VAC/VDC) 5
Rated Current per Contact (Max.) (A) 2～3A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) 13
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
