ERM8-020-05.0-S-DV

Home > Board-to-Board Connectors > ERM8-020-05.0-S-DV

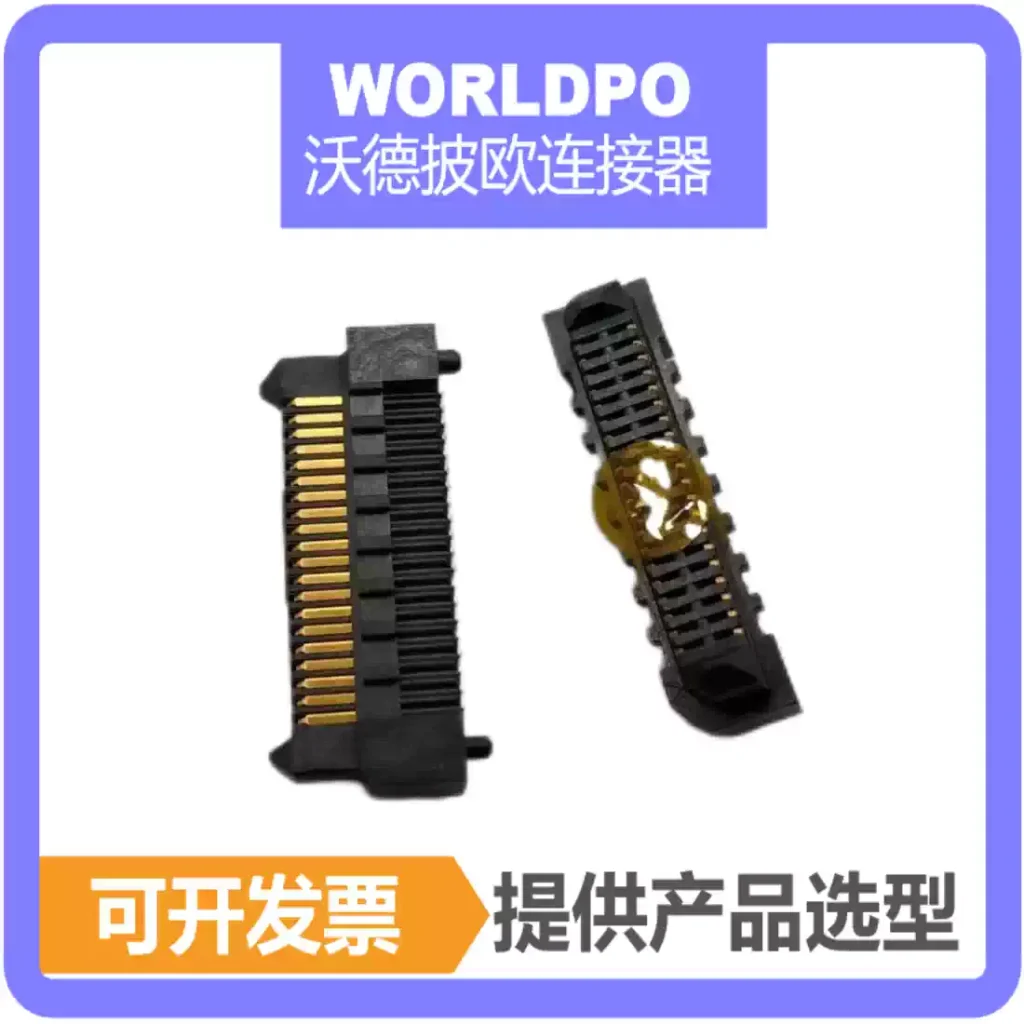

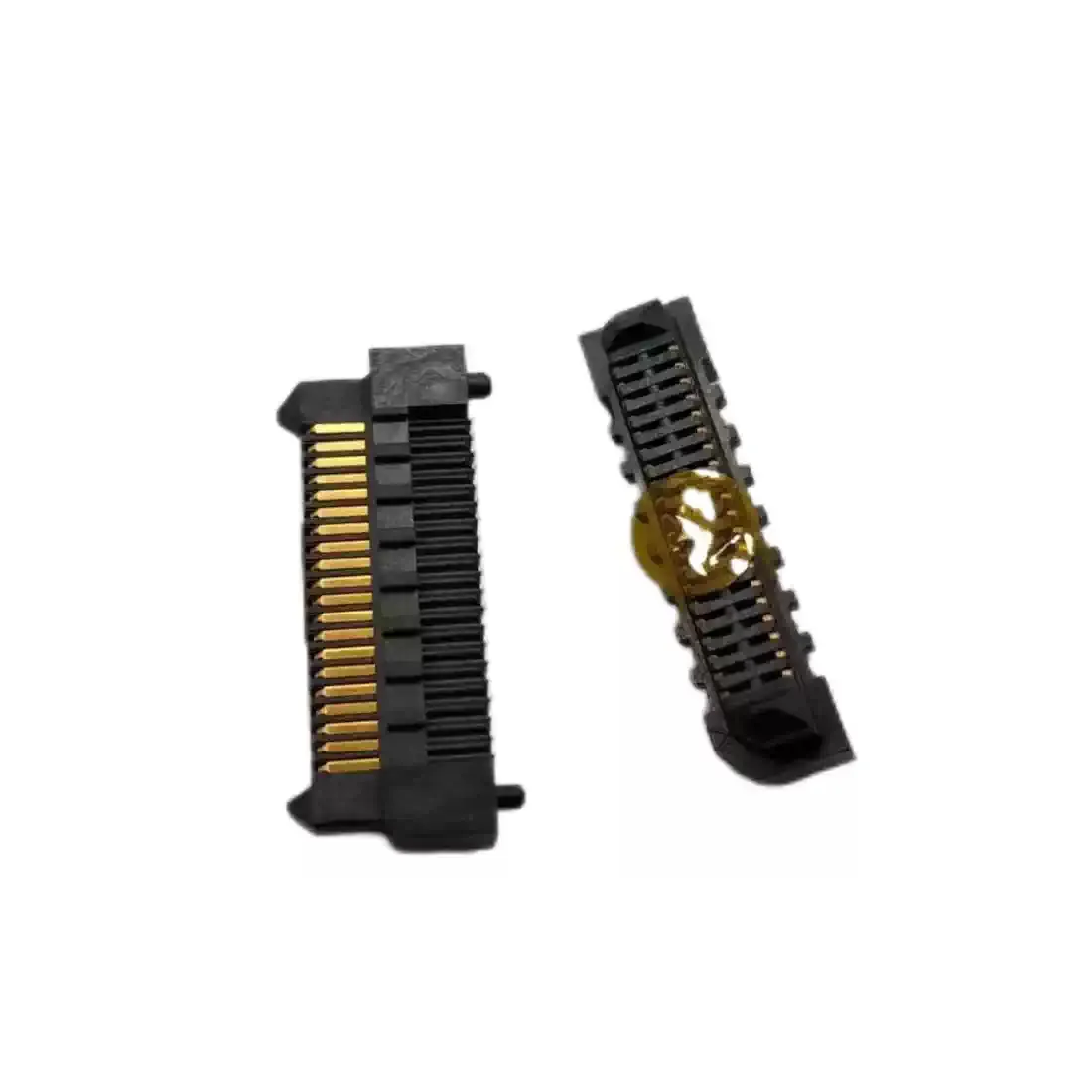

ERM8-020-05.0-S-DV
Board-to-Board Connectors
ERM8-020-05.0-S-DV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible model of ERM8-020-05.0-S-DV is WERM8-2X20H05.0SDV. ERM8-020-05.0-L/S-DV-K-TR is a male connector with 2 rows and 40 pins, and combined heights of 10/12/14 mm. This board-to-board connector features good heat and cold resistance.
Connector Series: WERM8
Number of Pins: 40
Connector Pitch: 0.80mm
Rows: 2
$3.75 $3.23
In Stock (4185)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERM8-020-05.0-S-DV
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Other
Material / Metal High Copper Alloy
Rows 2
Color Black
Rated Voltage (VAC/VDC) 100
Rated Current per Contact (Max.) (A) 3～5A
Plating Selective Gold/Tin Plating (Au/Sn)
Plating Thickness 30μin（0.76μm）
Packaging Multi-Layer Reel
Insulation Diameter (mm) 4.90
Wire Gauge (AWG) 12
Operating Temperature -55℃～125℃
Number of Circuits Other
