ERM8-035-05.0-L-DV-K-TR
Board-to-Board Connectors
ERM8-035-05.0-L-DV-K-TR
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

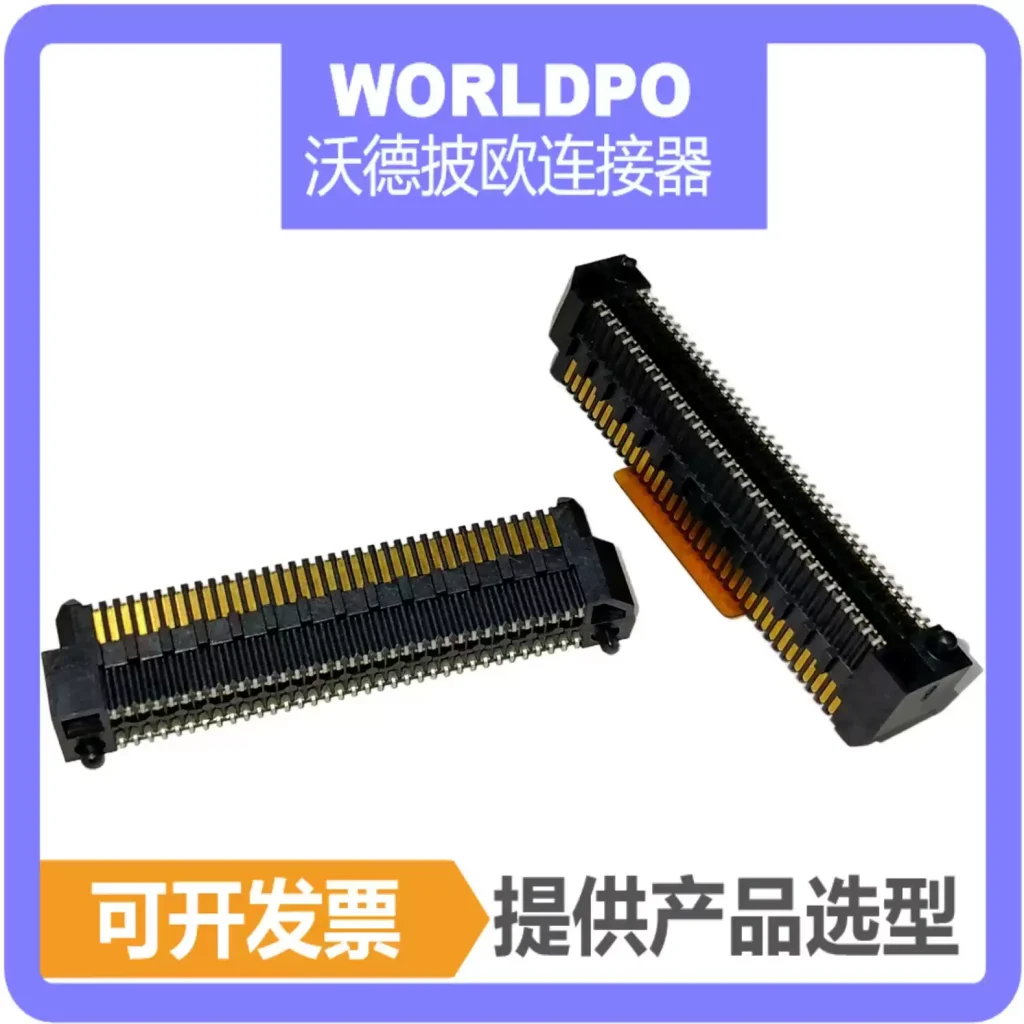

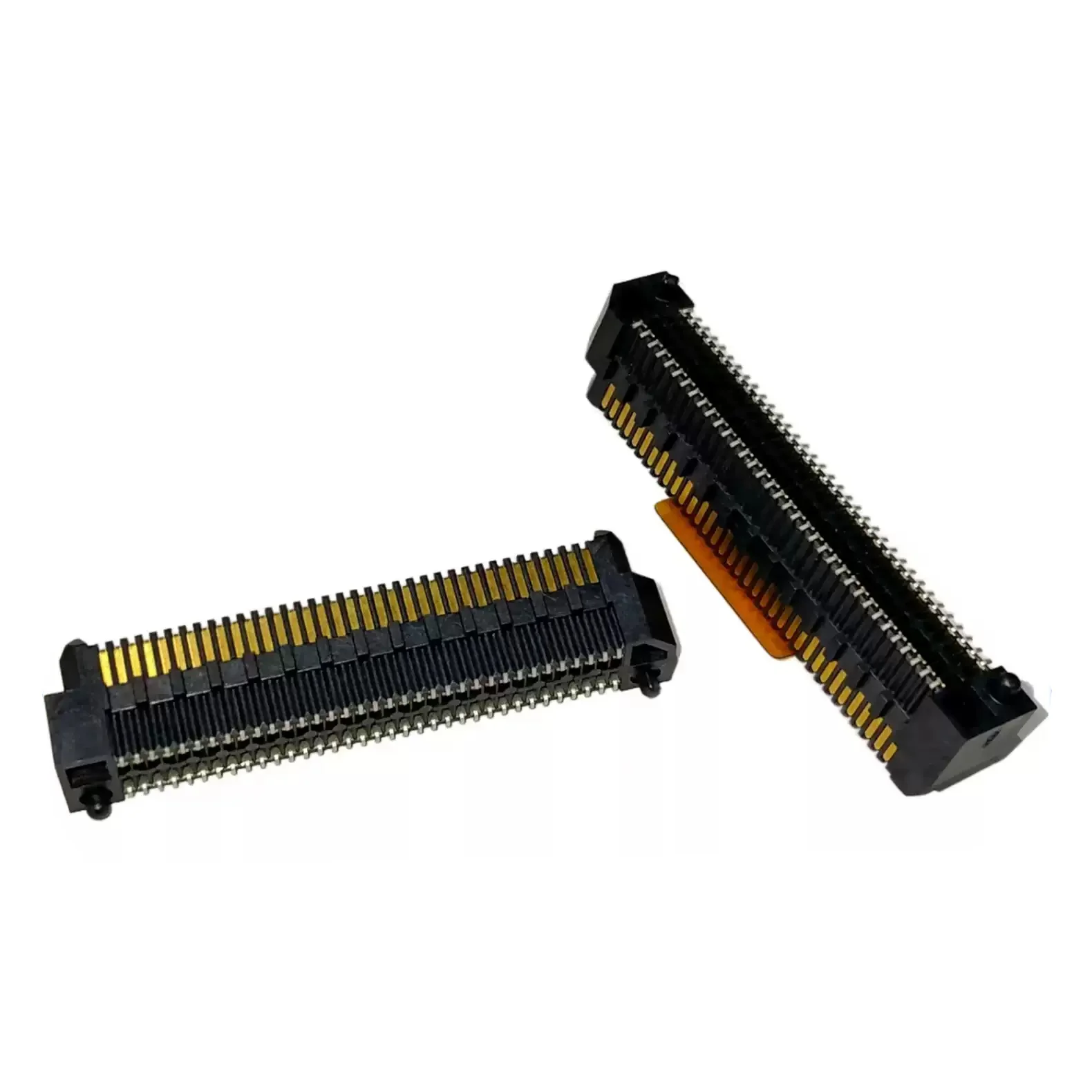

The compatible model of ERM8-035-05.0-L-DV-K-TR is WERM8-2X35H05.0LDVKTR. ERM8-035-05.0-L/S-DV-K-TR is a 2-row 70-pin male board-to-board connector with a mated height of 10mm, featuring excellent heat and cold resistance.
Connector Series: WERM8
Number of Pins: 70
Connector Pitch: 0.80mm
Rows: 2
$3.84 $3.54
In Stock (1198)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model ERM8-035-05.0-L-DV-K-TR
Connector Type Terminal
Connector Series WERM8
Connector Pitch 0.80mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) 3.70
Wire Gauge (AWG) 22
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
