FTSH-105-01-F-DV

Home > Board-to-Board Connectors > FTSH-105-01-F-DV
FTSH-105-01-F-DV
Board-to-Board Connectors
FTSH-105-01-F-DV
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

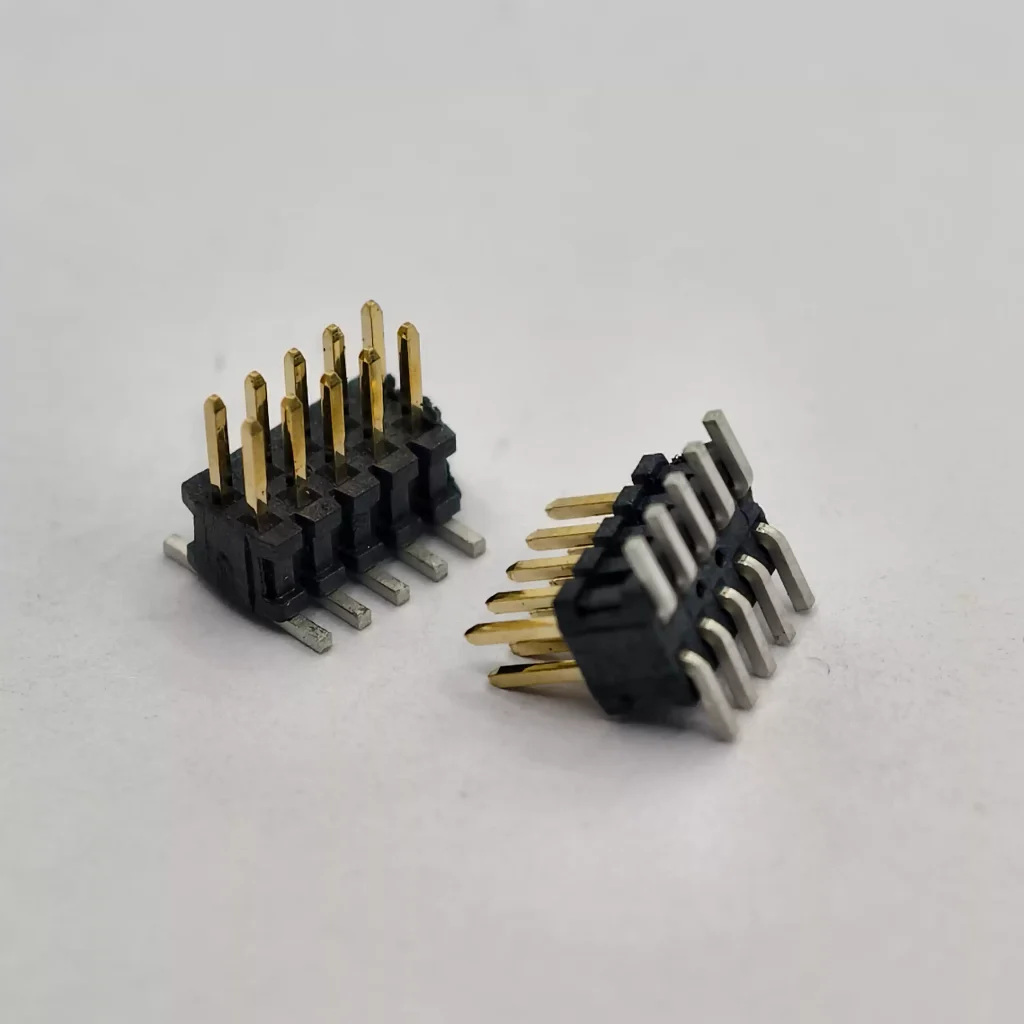

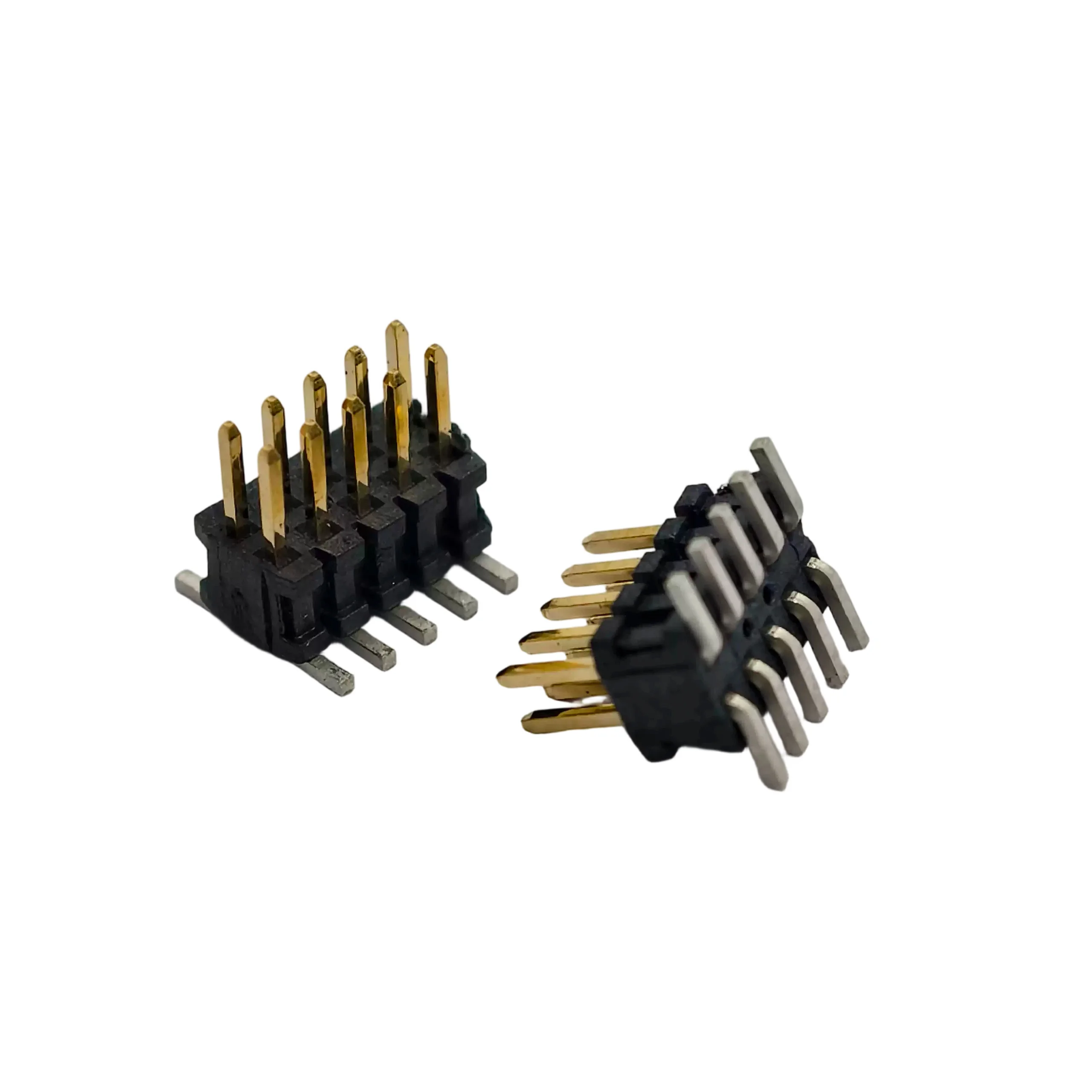

The compatible product for FTSH-105-01-F-DV is WFTSH-2X5H01FDV, which is compatible with the Samtec FTSH-105-01-L/F-DV-TR connector male pin, featuring 2‑row, 1.27‑mm pitch, 10‑pin vertical surface‑mount design with heat and cold resistance
Connector Series: WFTSH
Number of Pins: 10
Connector Pitch: 1.27mm
Rows: 2
$0.35 $0.29
In Stock (1058)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-105-01-F-DV
Connector Type Terminal
Connector Series WFTSH
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
