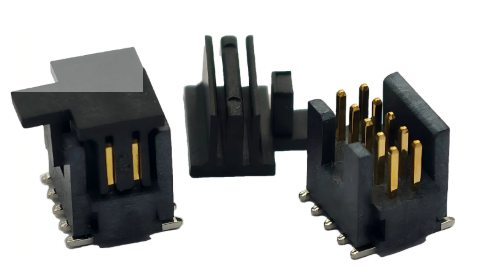

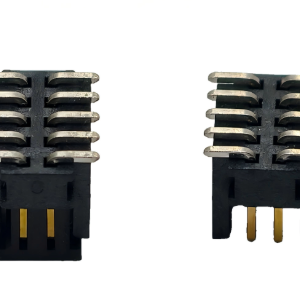

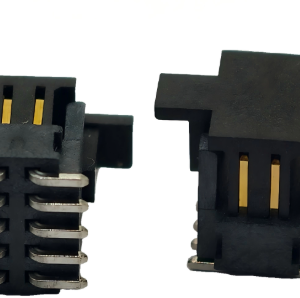

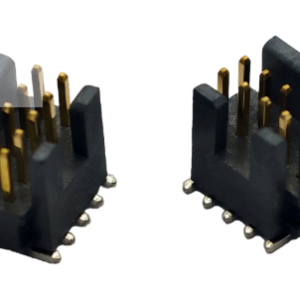

FTSH-105-01-FM-DV-K-P
Board-to-Board Connectors
FTSH-105-01-FM-DV-K-P
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
The compatible product for FTSH-105-01-FM-DV-K-P is WFTSH-2X5H01FMDVKP, which is compatible with Samtec FTSH-105-01-LM/FM-DV-K-P-TR male 1.27mm simple bull 2-row 10P board‑to‑board connector, featuring heat and cold resistance
Connector Series: WFTSH
Number of Pins: 10
Connector Pitch: 1.27mm
Rows: 2
$0.27 $0.24
In Stock (1296)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-105-01-FM-DV-K-P
Connector Type Terminal
Connector Series WFTSH
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
