SOLC-130-02-L-Q-LC

Home > Board-to-Board Connectors > SOLC-130-02-L-Q-LC

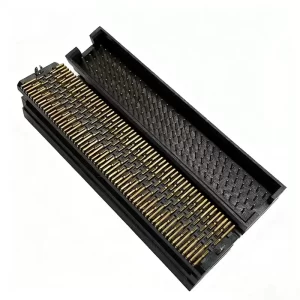

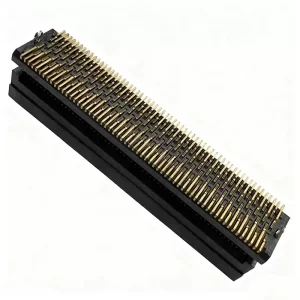

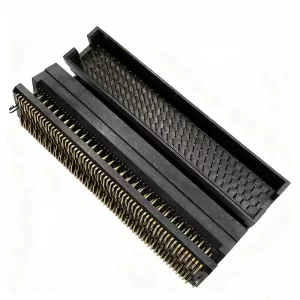

SOLC-130-02-L-Q-LC
Board-to-Board Connectors
SOLC-130-02-L-Q-LC
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.
SOLC-130-02-L-Q-LC is compatible with WSOLC-4X30H02LQLC.It is a compatible product for the Samtec male connector TOLC-130-22-L/F/S-Q-LC-K-TR, 1.27mm pitch, 4 rows, 120 pins.High & low frequency performance, heat resistance, cold resistance, excellent plugging/unplugging endurance and anti-oxidation properties.
Connector Series: WSOLC
Number of Pins: 120
Connector Pitch: 1.27mm
Rows: 4
$8.9 $8
In Stock (2300)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model SOLC-130-02-L-Q-LC
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Right-angle
Material / Metal Brass
Rows 4
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
