FTSH-105-01-L-DV-K
Board-to-Board Connectors
FTSH-105-01-L-DV-K
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

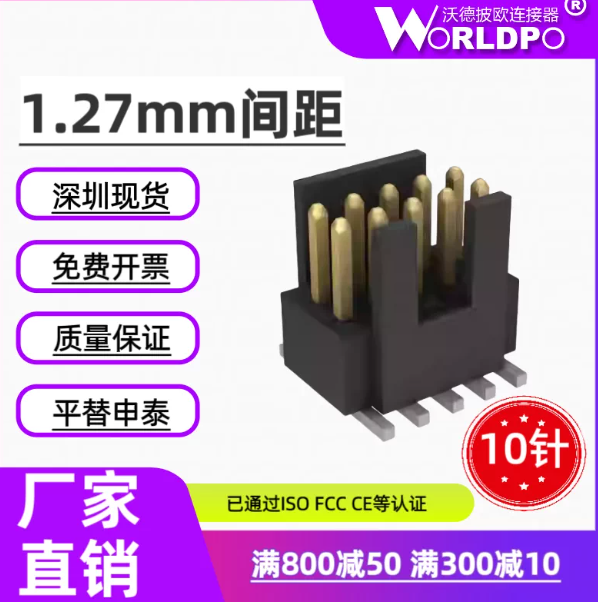

FTSH-105-01-L-DV-K is replaced by WFTSH-205H01LDVK.It is interchangeable with FTSH-105-01-F/L-DV-K-TR. Male pin header with 1.27mm pitch, 2 rows, 10 pins, board-to-board connector, resistant to high and low temperatures.
Connector Series: WFTSH
Number of Pins: 10
Connector Pitch: 1.27mm
Rows: 2
$0.27 $0.25
In Stock (3000)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-105-01-L-DV-K
Connector Type Terminal
Connector Series WFTSH
Connector Pitch 1.27mm
Terminal Interface Other
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Natural
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) Other
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
