FTSH-106-01-F-D-RA

Home > Board-to-Board Connectors > FTSH-106-01-F-D-RA
FTSH-106-01-F-D-RA
Board-to-Board Connectors
FTSH-106-01-F-D-RA
Standalone or 100% Samtec-Compatible. Identical Specs. Plug & Play.

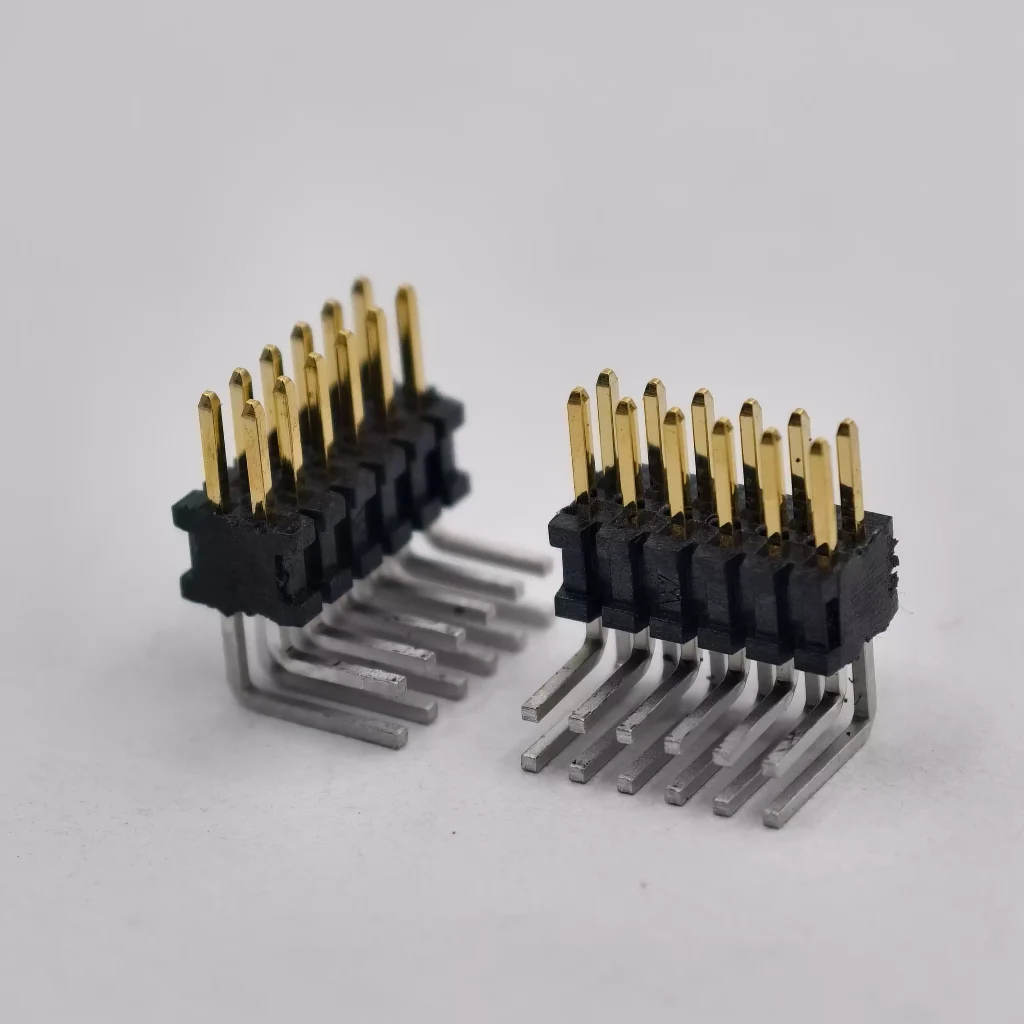

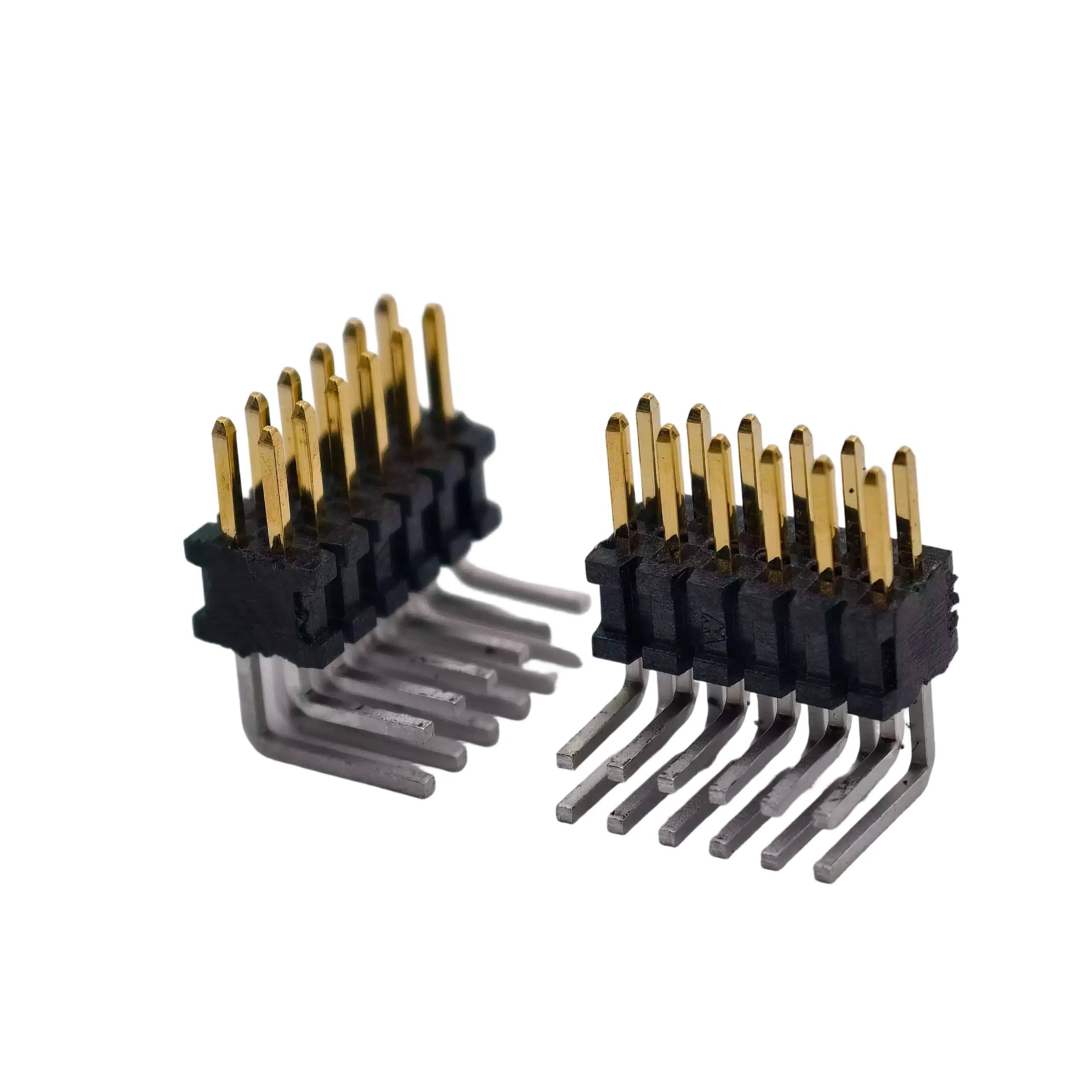

The compatible product for FTSH-106-01-F-D-RA is WFTSH-2X6H01FDRA, which is compatible with Samtec FTSH-106-01-L/F-D-RA male pin 2-row right-angle board‑to‑board connector with 12 pins and a pitch of 1.27mm, featuring heat resistance and cold resistance
Connector Series: Other
Number of Pins: 12
Connector Pitch: 1.27mm
Rows: 2
$0.7 $0.5
In Stock (1094)
Request a Quote
Basic Information

* "The parameters listed are for reference only. For detailed specifications and design drawings, please contact our online technical support team."

Category Board-to-Board Connectors
Model FTSH-106-01-F-D-RA
Connector Type Terminal
Connector Series Other
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 2
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Product Dimension
Dimension image will be displayed here
